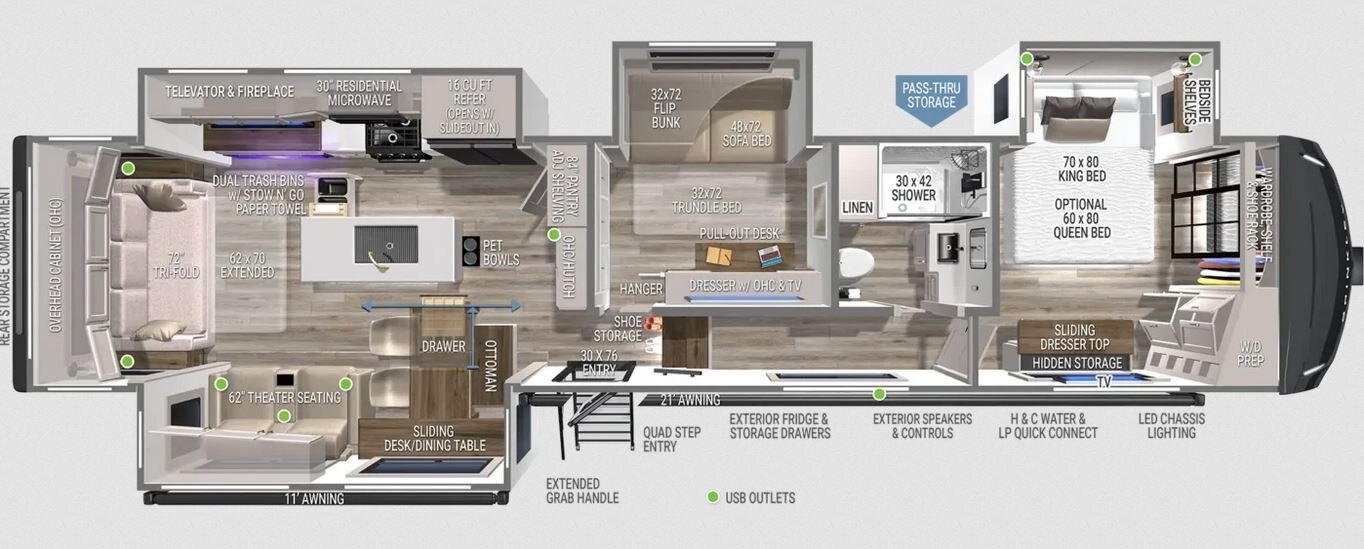

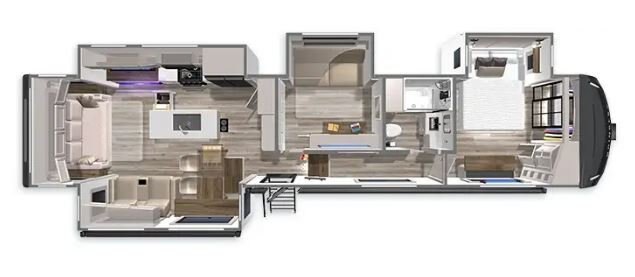

2026-Brinkley-Model-Z-3610-Floorplan-Flyer.pdf
- Monday 8:30 AM – 5:00 PM
- Tuesday 8:30 AM – 5:00 PM
- Wednesday 8:30 AM – 5:00 PM
- Thursday 8:30 AM – 5:00 PM
- Friday 8:30 AM – 4:00 PM
- Saturday Closed: Appointment Only
- Sunday Closed: Appointment Only
ID # 38568411
2026 Brinkley MODEL Z 3610
Call for Price
Overview
Specifications
weights
axles & tires
tank capacity
exterior
interior
insulation
chassis & suspension
exterior & storage
solar, electrical & hvac
plumbing & lp
kitchen & dining
bathroom
bedroom
construction & warranty
literature
Documents

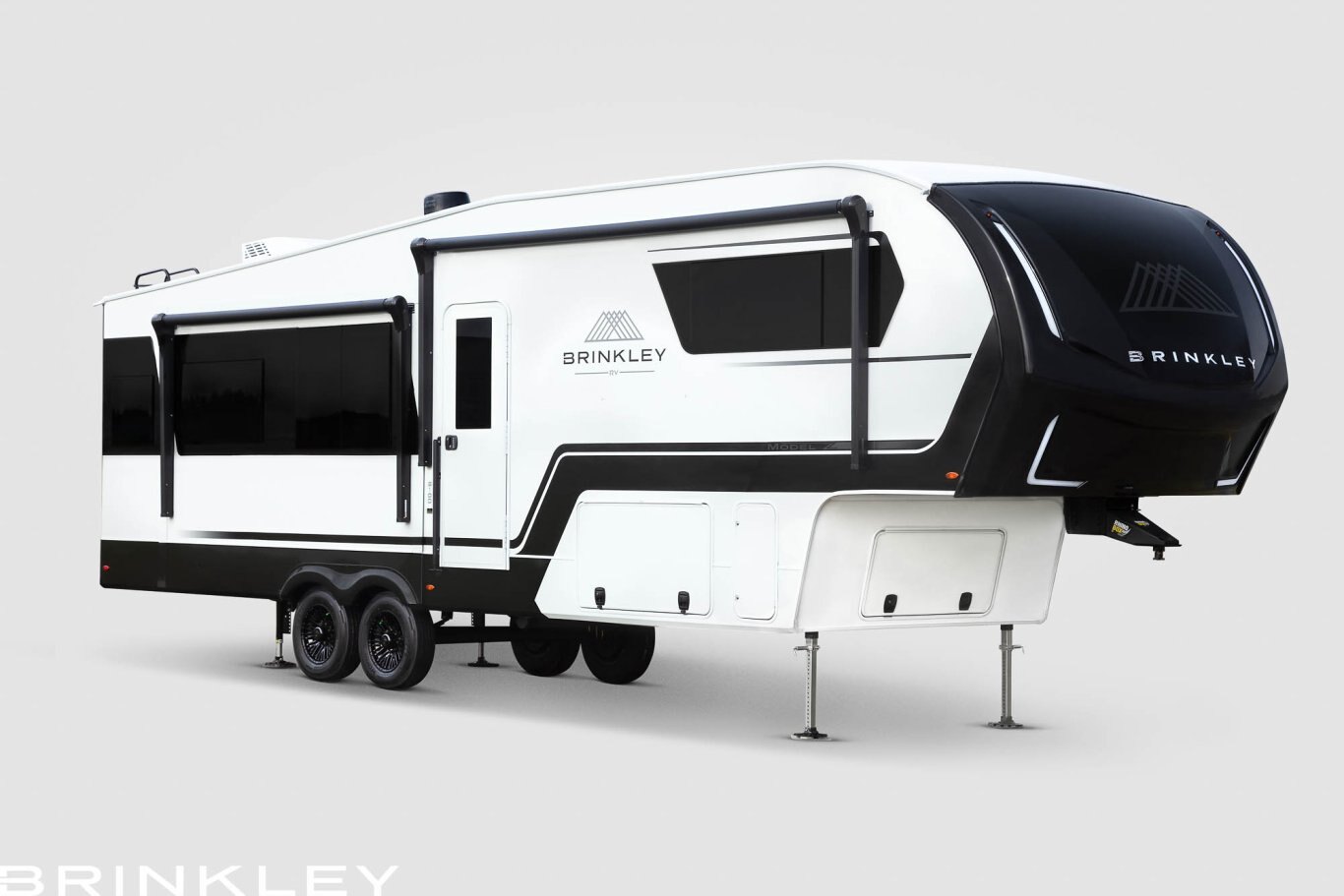

MODEL ZLUXURY MID-SIZED FIFTH WHEELSThe Brinkley Model Z – Mid-Sized Luxury Fifth Wheel is in a class of its own… Featuring an automotive exterior with a residential interior, yielding NO COMPROMISE. It’s destined to change the RV ownership experience. Whether you’re a weekend camper or a full-time RVer, Model Z offers features and amenities that will appeal to all camping enthusiasts. From 7k axles, 17.5” H-rated Cooper tires, flush floor slides, and a class-leading 79.5″ bed & bath interior height, to name a few. The Model Z has a combination of high-end features unheard of on a Mid-Size Fifth Wheel.
|
Model
Z
Category Name
Trailers
Year
2026
Sale Type
New
Manufacturer
Brinkley
Height
13′ 4″
Length
41′ 9″
UVW Weight
14,859 lbs.
GVWR Weight
17,695 lbs.
Hitch Weight
2,591 lbs.
Weights
WEIGHTS |
3610 |
| UVW (lbs.) | 14,859 |
| GVWR (lbs.) | 17,695 |
| Hitch (lbs.) | 2,591 |
Axles & Tires
AXLES & TIRES |
3610 |
| Axle Rating (lbs.) | 8k |
| Springs Rating (lbs.) | 8k |
| Tire & Wheel Size | 215/75 R17.5 |
| Load Range | H |
| Ply | 16 |
Tank Capacity
TANK CAPACITY |
3610 |
| Fresh Water (gal.) | 75 |
| Gray Water (True gal.) | 90 True |
| Black Water (gal.) | 45 |
| LP (lbs.) | 60 (30+30) Up to 80 |
Exterior
EXTERIOR |
3610 |
| Length | 41′ 9″ |
| Height | 13′ 4″ |
| Width | 96″ |
| Cargo Storage (cu.ft.) | 140+ |
Interior
INTERIOR |
3610 |
| Bath Ceilings | 79 1/2″ |
| Bedroom Ceilings | 79 1/2″ |
| Slide Ceilings | 76″ |
Insulation
INSULATION |
3610 |
| Floor R-Value | R40 |
| Walls R-Value | R11 |
| Ceiling R-Value | R40 |
Chassis & Suspension

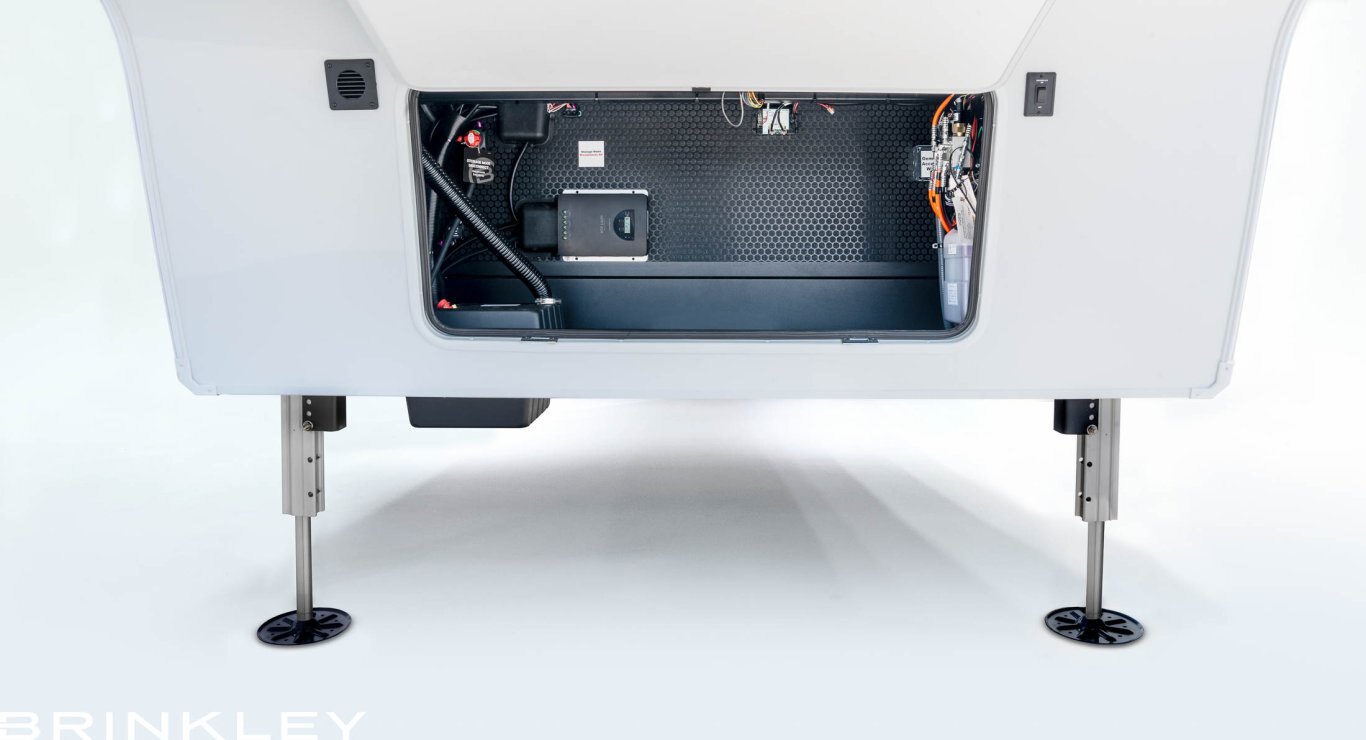

| Monotube Chassis (Brinkley Spec & Certified) Road Defense Triple Powder Coated Chassis One-Touch Automatic 6-Point Leveling System w/ Wide-Stance Jacks Heavy Duty 8,000 lbs. Axles w/ 8,000 lbs. Leaf Springs Commercial Grade Load Range H 16-Ply Tires 17.5″ Custom Aluminum Luxury Wheels Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display Road Debris Galvanized Wheel Well Shields Counteract Tire Balancing Beads Brinkley Model Z Touring Package: ✔ CURT Touring Coil Suspension (TCS) System (reduces frame shock absorption by 50%) ✔ Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost ✔ ABS System Mobile App w/ Odometer & Status ✔ CURT Helux™ King Pin w/ Coil Spring & Shock-Absorber Gen-Y® Executive Gooseneck w/ SnapLatch Torsion Flex 2″ Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW) MAX-Vision™ Reverse Lighting System (Includes Backup Lights & Underbody Ground Lighting) Upgraded 6' Coiled Breakaway Safety Cable LED Underbody Ground Lighting |
Exterior & Storage

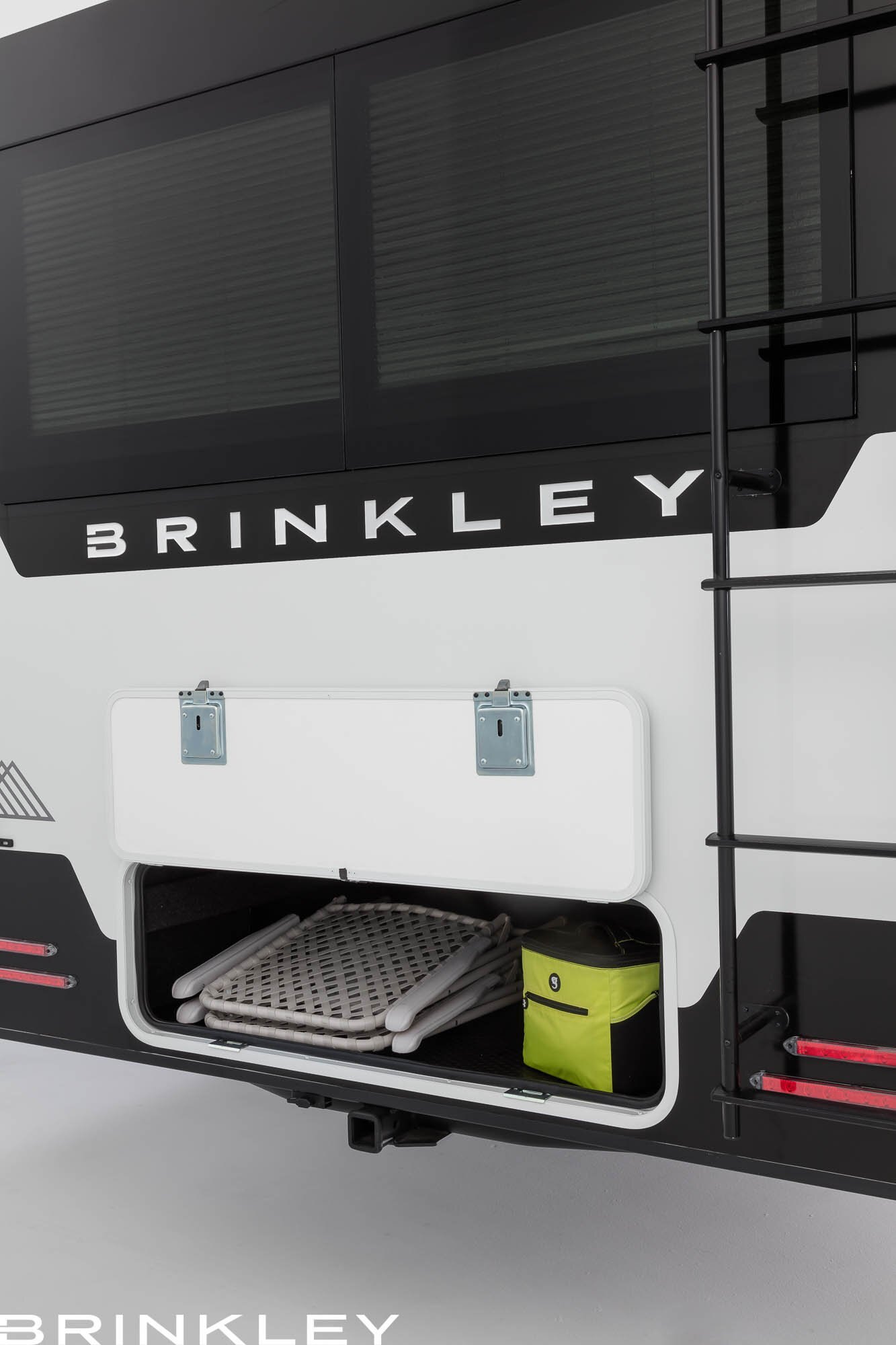

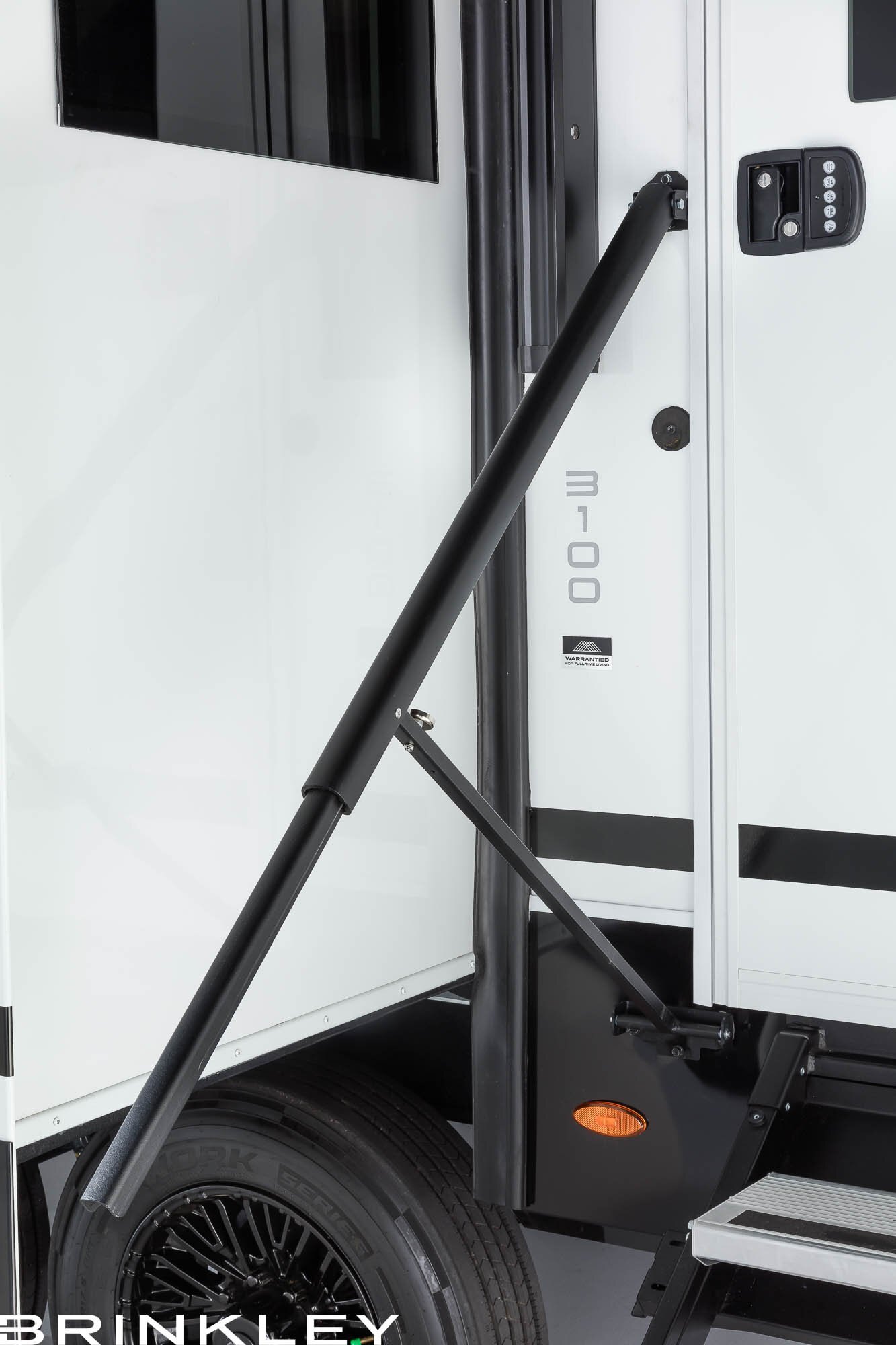

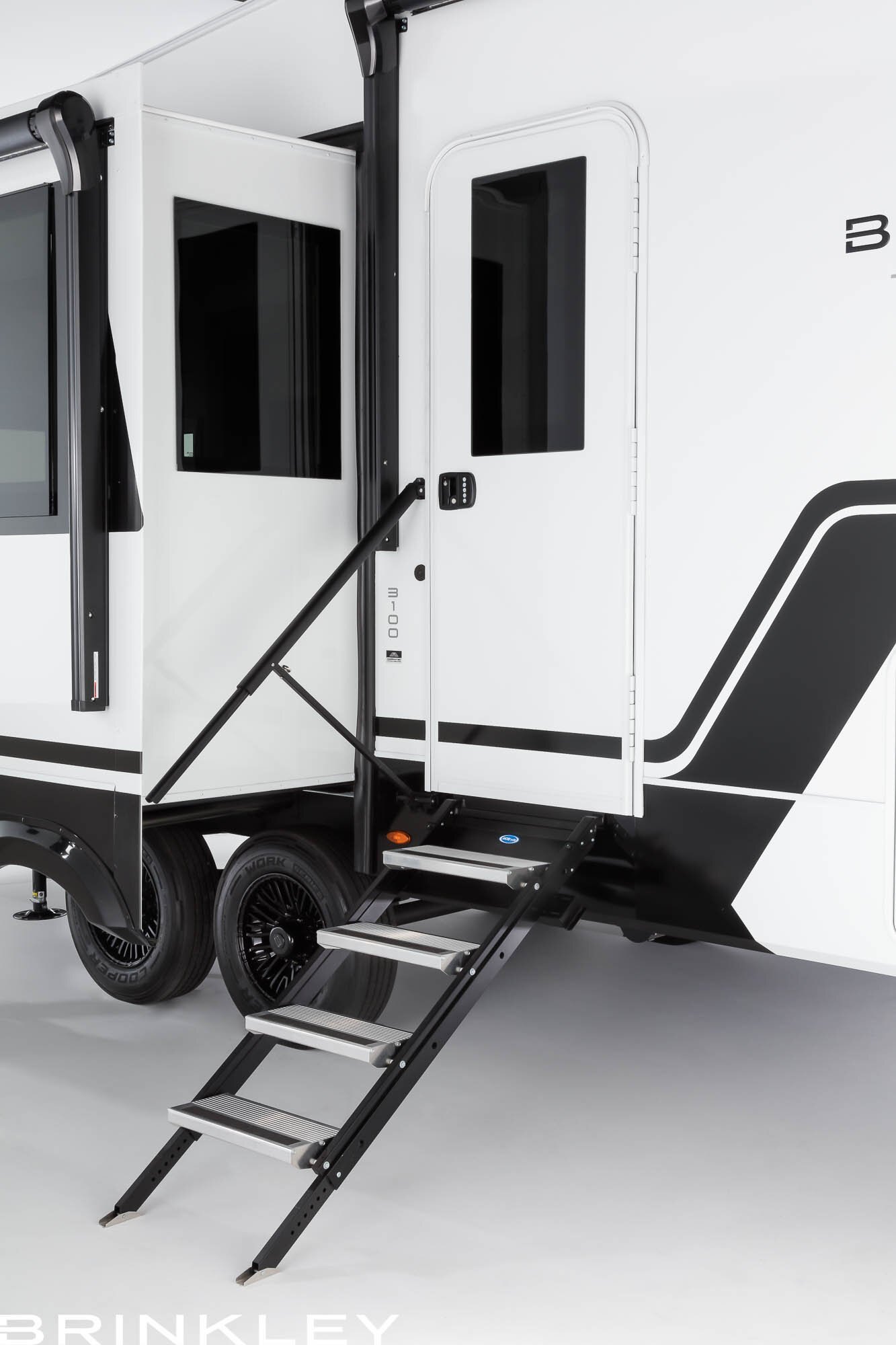

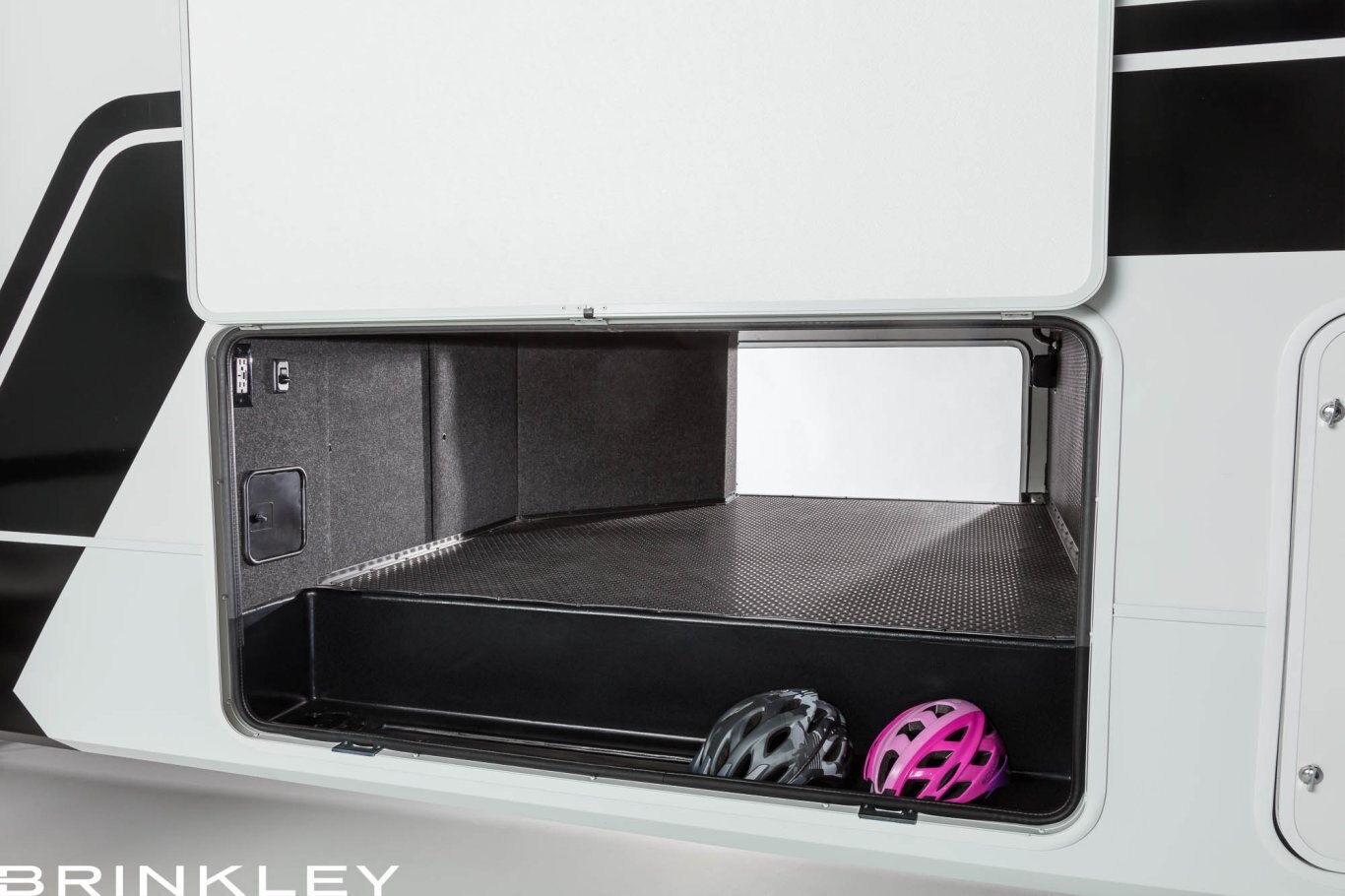

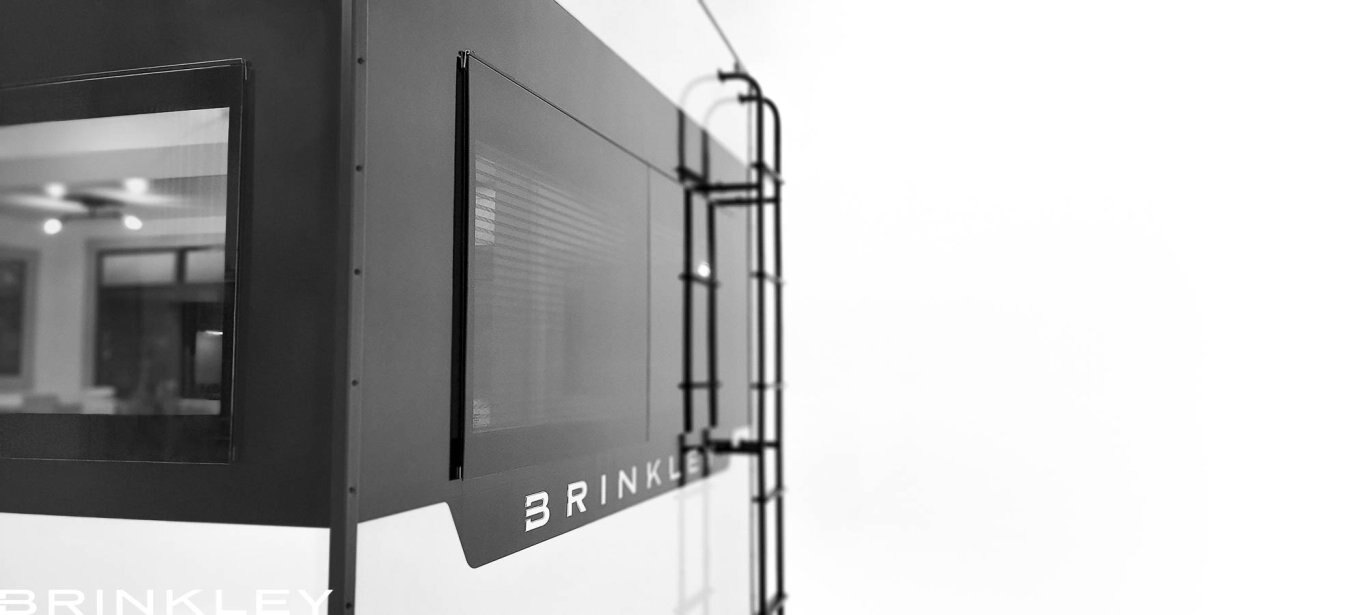

| Square Euro Frameless Windows w/ 6″ Openings (Industry 1st) Dual Pane Square Euro Frameless Windows w/ 6″ Openings Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics Automotive Front Cap, Lights, & Lenses Rockford Fosgate Stereo w/ Bluetooth & App Control Exterior Campsite Tuned Speakers Electric Awning(s) w/ Dotless COB Neon LED Lighting Slide-Out Topper Ready Motion Activated LED Scare Light Backup Camera & Wireless Monitor w/ Observation/Security Mode Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster Oversized Front Storage Compartment (Wide-Stance Jacks) Mid-Coach Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets Storage Compartment (Heated & Insulated) Rear Storage Compartment w/ Motion Lighting & Power Outlets (Heated & Insulated) Tough-Ply Floor & Walls in Storage Compartments Brinkley KeBloc Accessory Mounting System Prep w/ 2 Blocks Pet & Property Security Campside Tie-Down Slam Latch Baggage Doors Heavy-Duty Ladder w/ Secure-Transition & Weep Holes Deluxe Entrance Package: ✔ Oversized 30″x76″ Entry Door ✔ Keyless Entry ✔ Integrated Blackout Window Shade ✔ Child/Pet Defender Screen Protector ✔ Screen Assist Push Bar Opener ✔ Screen Shot Automatic Screen Door Closer ✔ Extra-Wide Tip-To-Clean Entry Steps ✔ 54" Telescoping Entry Handrail (Extends to Bottom Step) Campside Outdoor Kitchen Amenities: ✔ 12v Refrigerator ✔ Heavy-Duty, Large Capacity Storage Drawers ✔ Work Surface Countertop |
Solar, Electrical & Hvac
| 370 Watt Solar Panel (740 Watt Ready) 60 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready) Pre-Wired For Up To 5.5k Generator (Front Storage Compartment) 18k BTU Rear Furrion Chill Cube Air Conditioner (Main) 13.5k BTU Front Air Conditioner w/ Heat Pump (Bed & Bath) 13.5k BTU Mid Air Conditioner w/ Heat Pump (Bonus Room) Brinkley Smart-Command™ Center w/ App Control Thermaflex® No Kink No Tear Heat Ducts Dual Recessed EZ Access Group 27 Battery Box Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement) 35k BTU High-Capacity Furnace Detachable Power Cord w/ LED Indicator Light & Angled Connector |
Plumbing & Lp

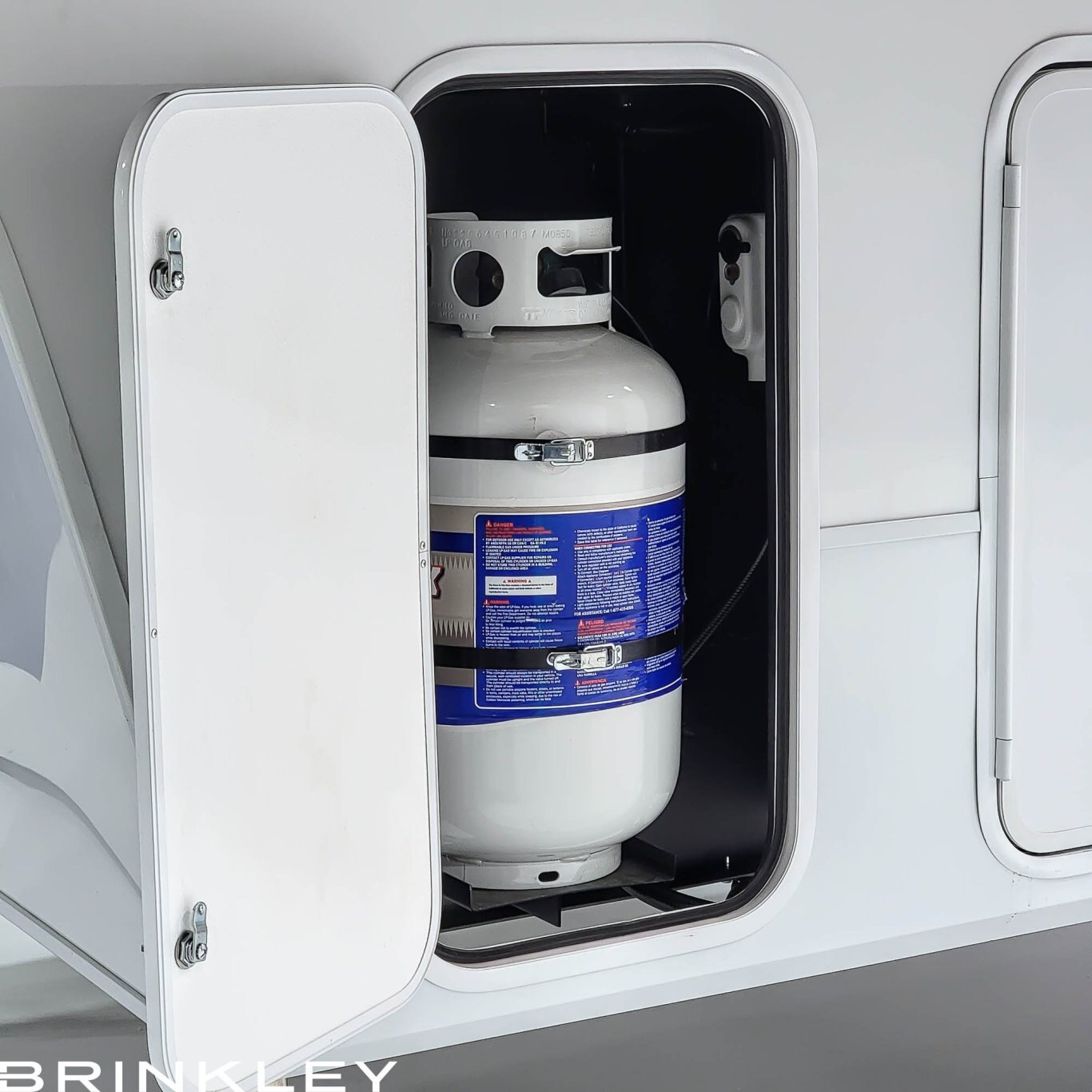

| Brass Plumbing Fittings (Industry First) Water Shutoff Valve on ALL Fixtures Upgraded Holding Tanks w/ True Capacities Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated) Single Termination Plumbing Extended Sewage Hose Storage Clear Sewer Cap w/ Lanyard Brinkley On-Command™ Docking & Utility Center 65′ Retractable City Water Hose 2x 90-Degree Brass Elbows for Docking Station Water Hoses EZ Winterization Valve in Utility Center Washer/Dryer Prep in Bedroom (Stackable or Combo) 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside) Tankless On-Demand Water Heater (144 Gallons Per Hour) 2x 30 lbs. LP/Propane Tanks (Fits 20 to 40 lbs. Bottles) LP-IQ Propane Gauge Exterior LP Quick Connect |

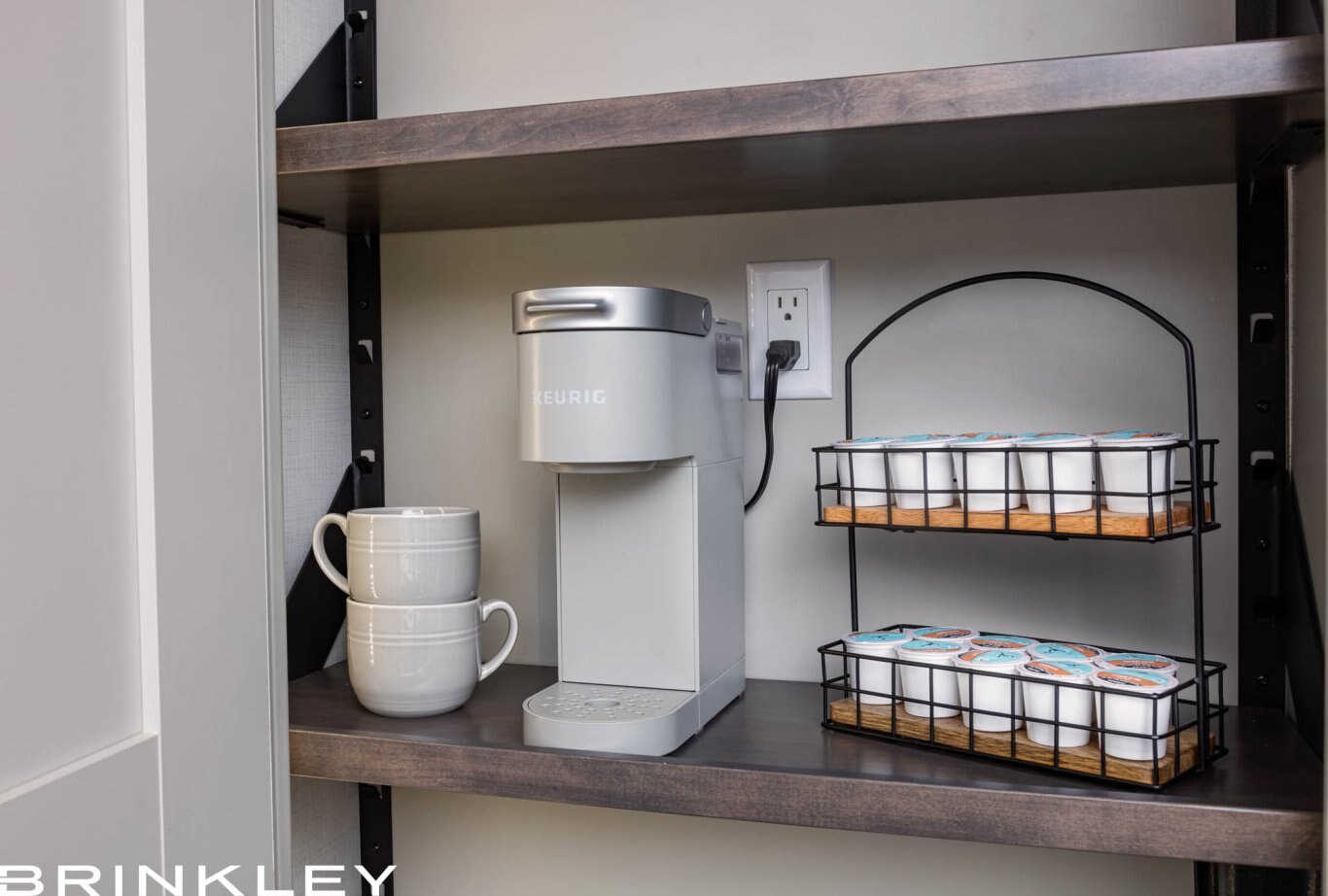

Kitchen

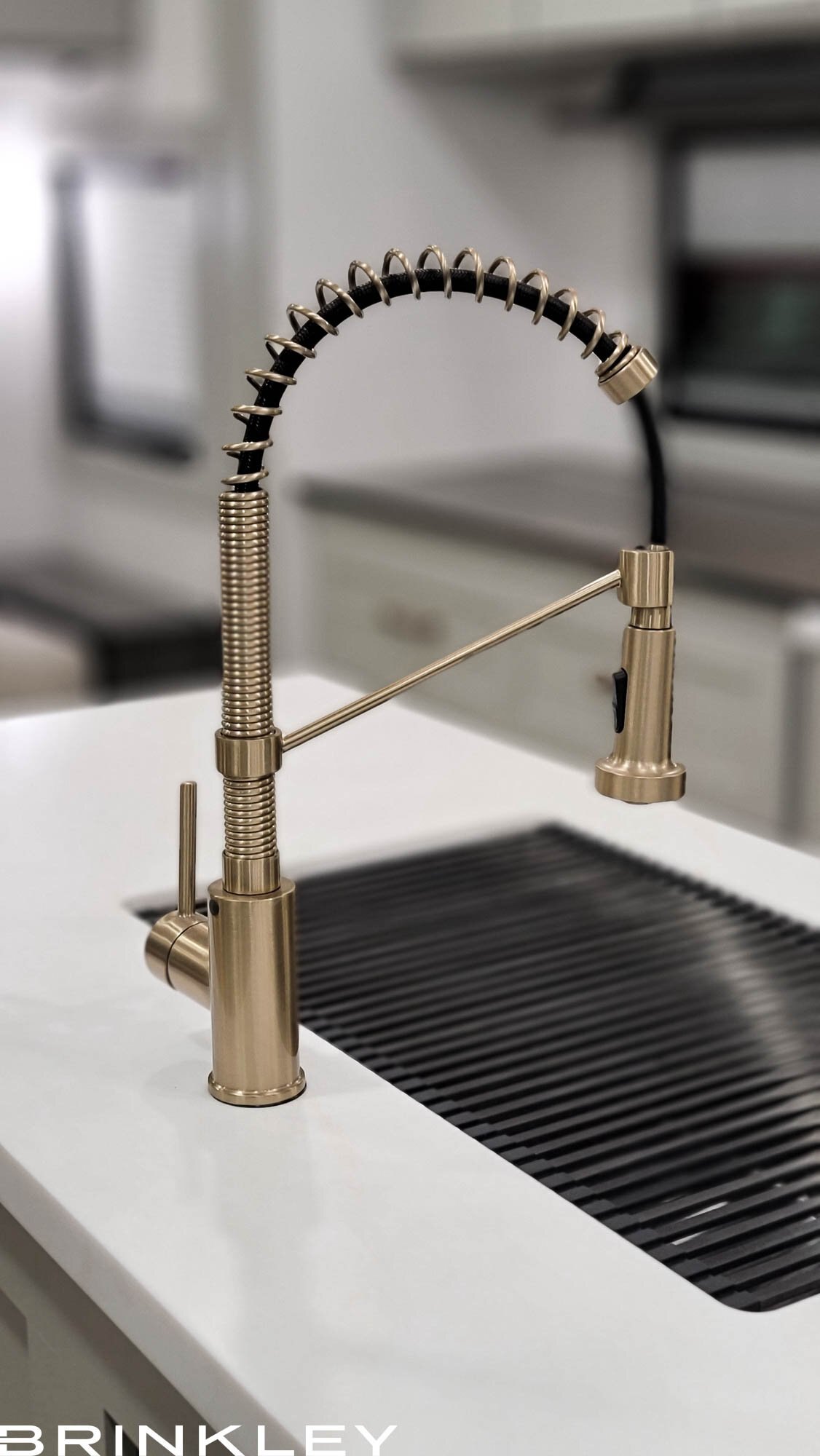

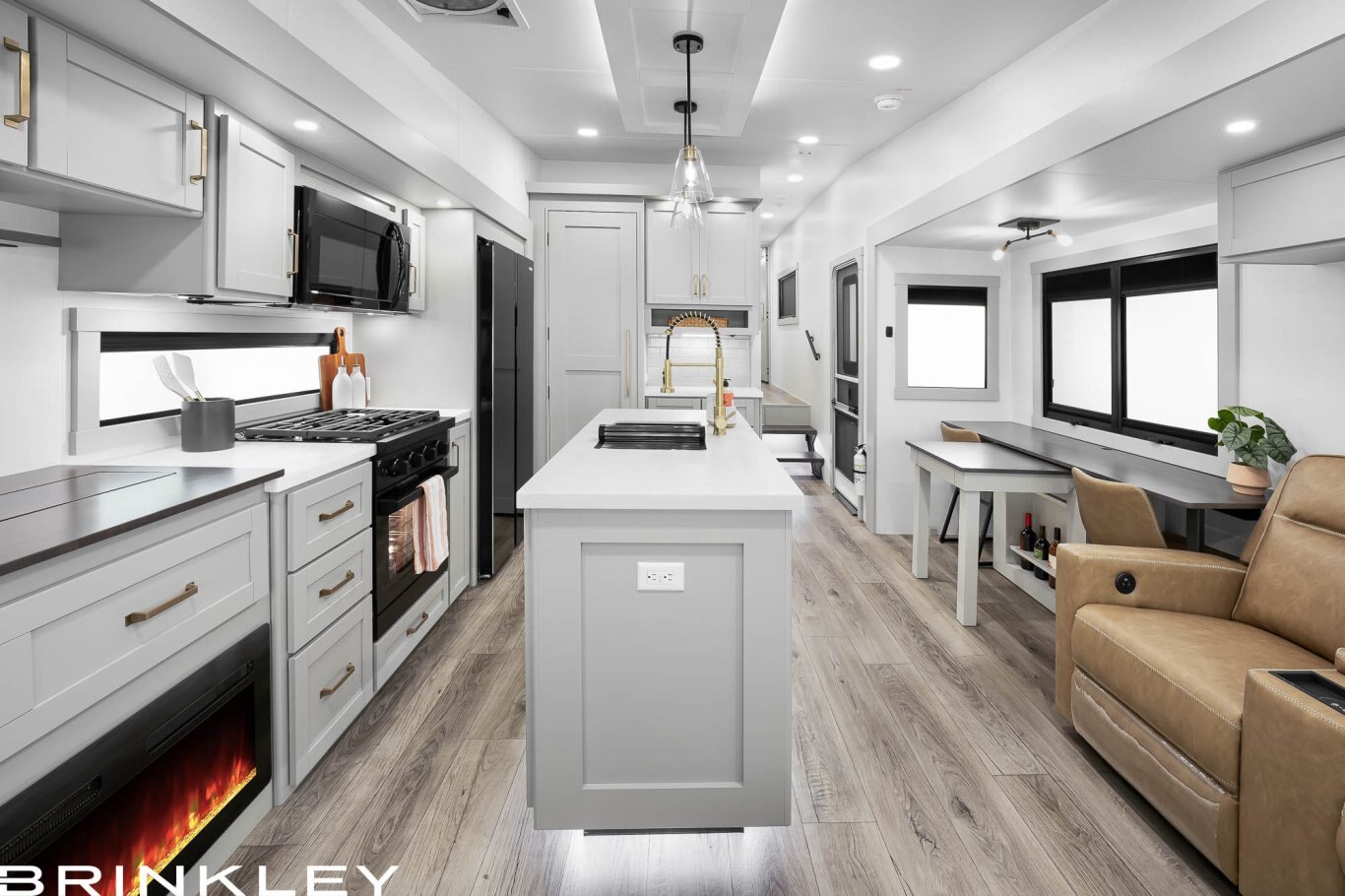

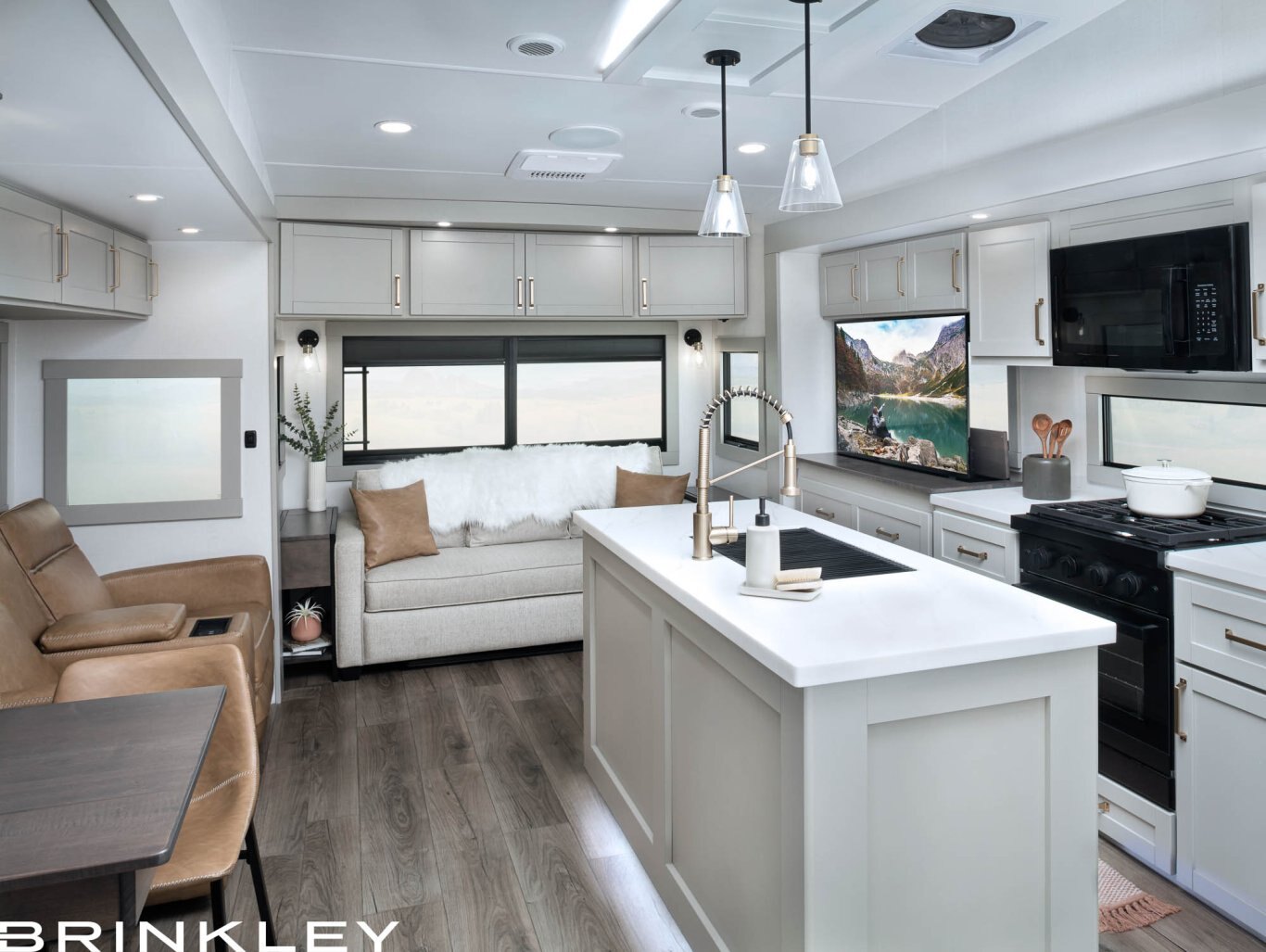

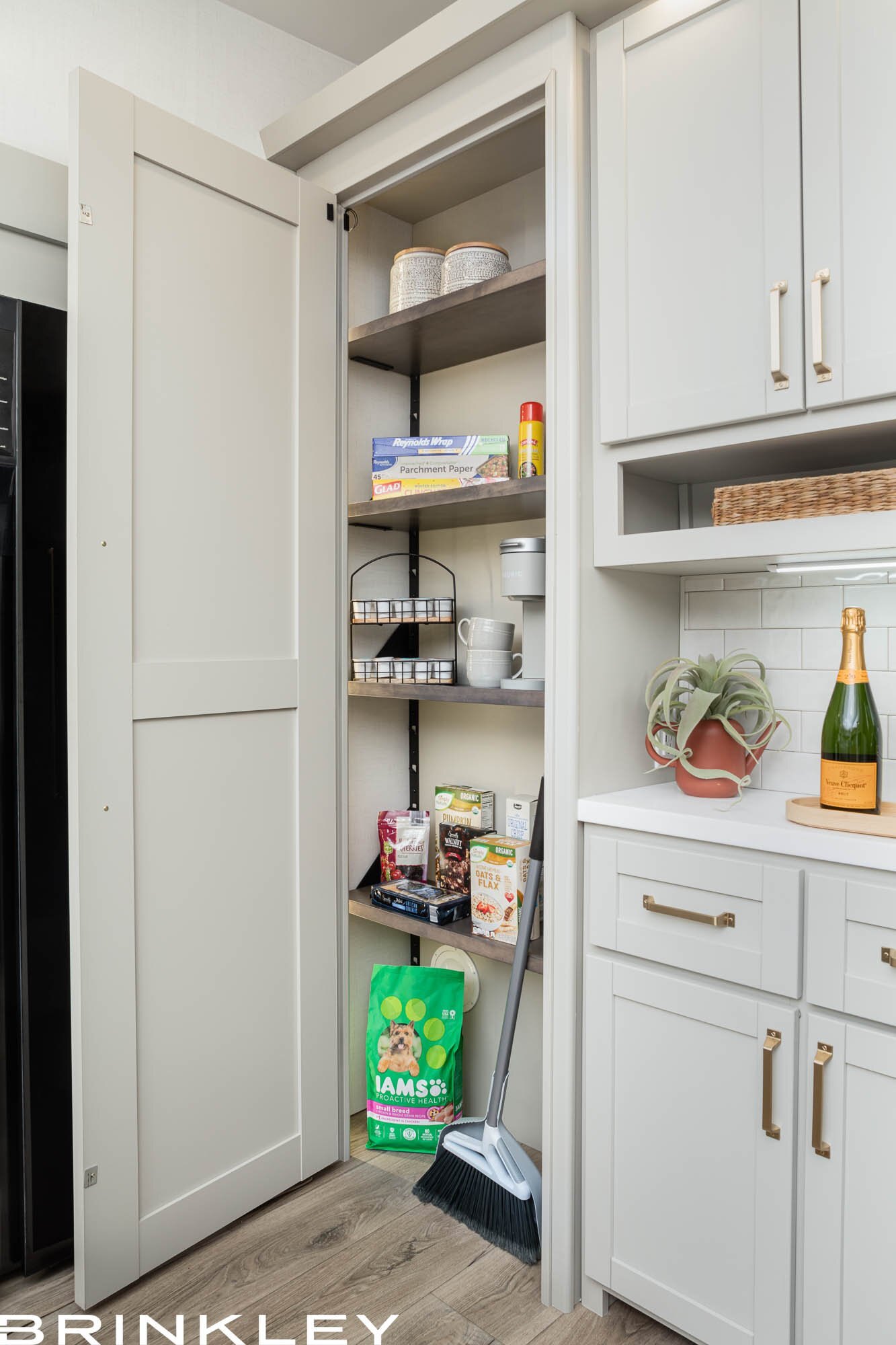

| Premium Residential Drawers w/ Dovetail Joints Dual Pull-Out Trash Bins Stow ‘n Go Paper Towel Caddy Custom Spice Rack Drawer Insert (Removable) Premium Residential Soft Close Cabinet Doors & Drawers Residential Solid Surface Countertops Residential Tile Backsplash Magnetic Cabinet & Drawer Catches Large Pantry w/ Adjustable Shelves & Appliance Outlet One-Piece Steel Island Base (Super Stable) Island Base & Soffit w/ Indirect Mood Light SO Hot Feature Icon Roun 16 Cubic Feet Energy Efficient 12-Volt Refrigerator Refrigerator Accessible w/ Slides In Slide-In Access: Refrigerator, Bathroom, Bedroom Farmhouse Black Stainless Steel Sink w/ Tuff Coat & Roller Cover Residential 30″ Microwave Hutch w/ Real Tile Backsplash Maxxair Fan w/ Rain Sensor |

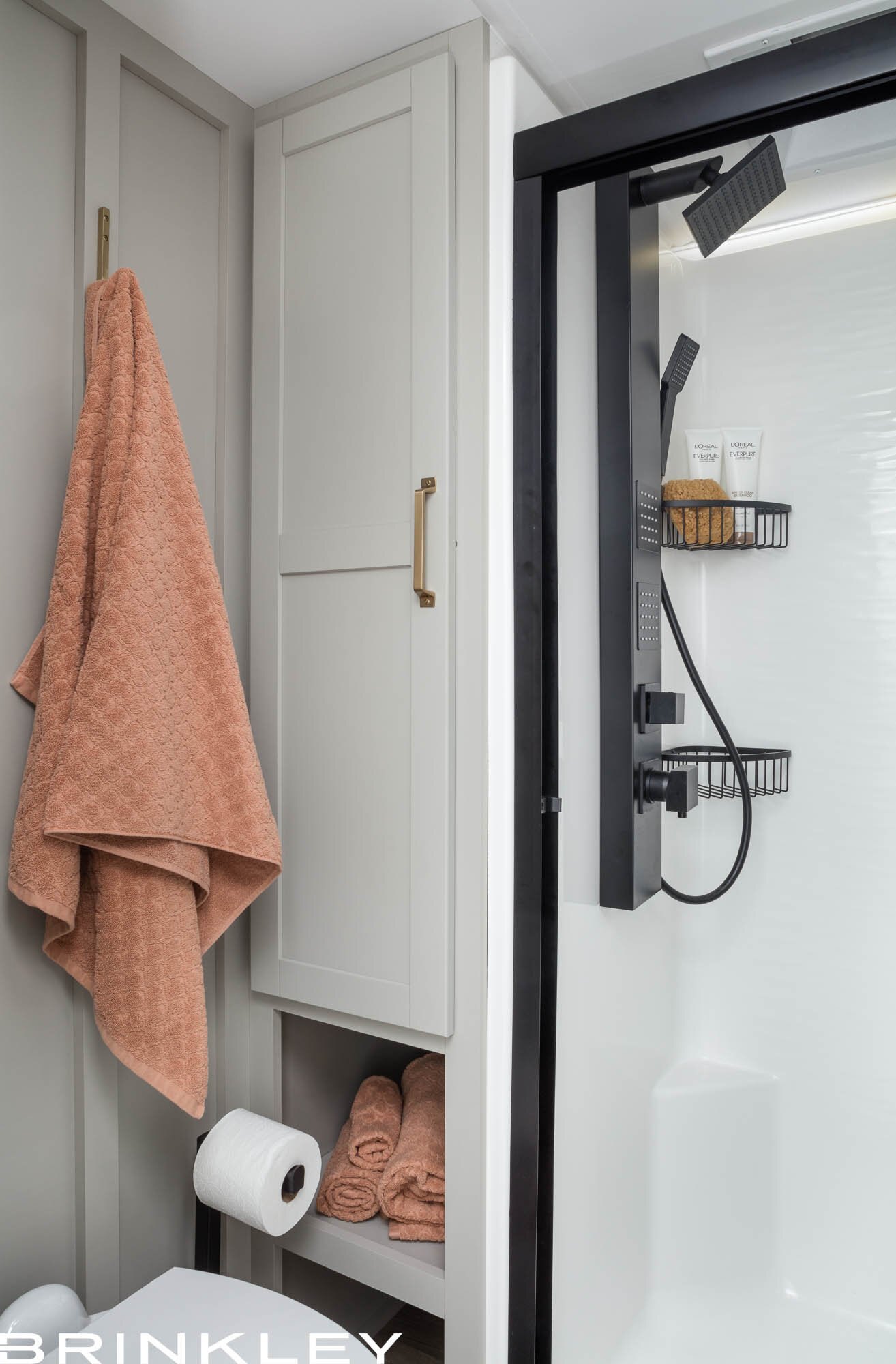

Bathroom

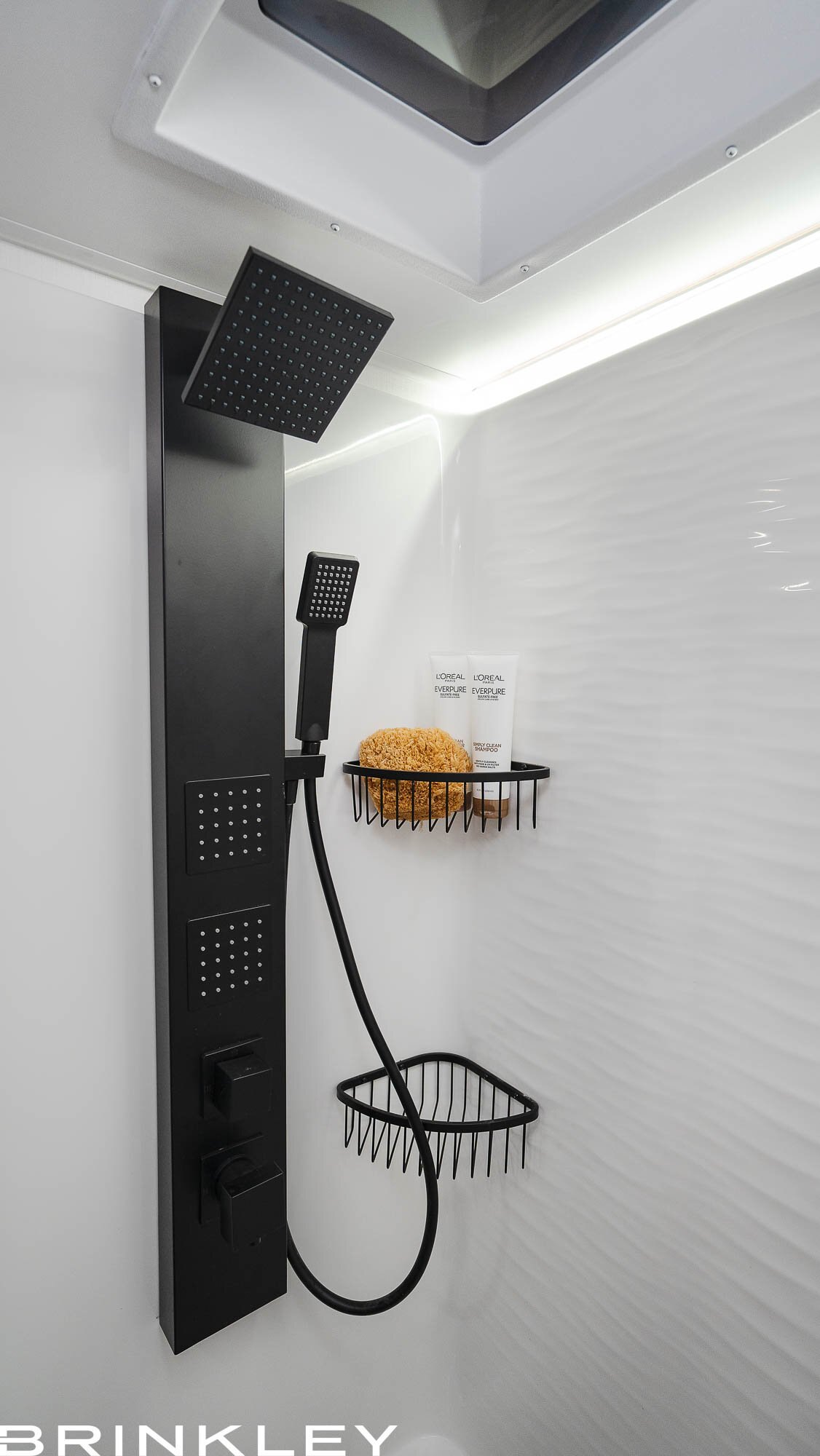

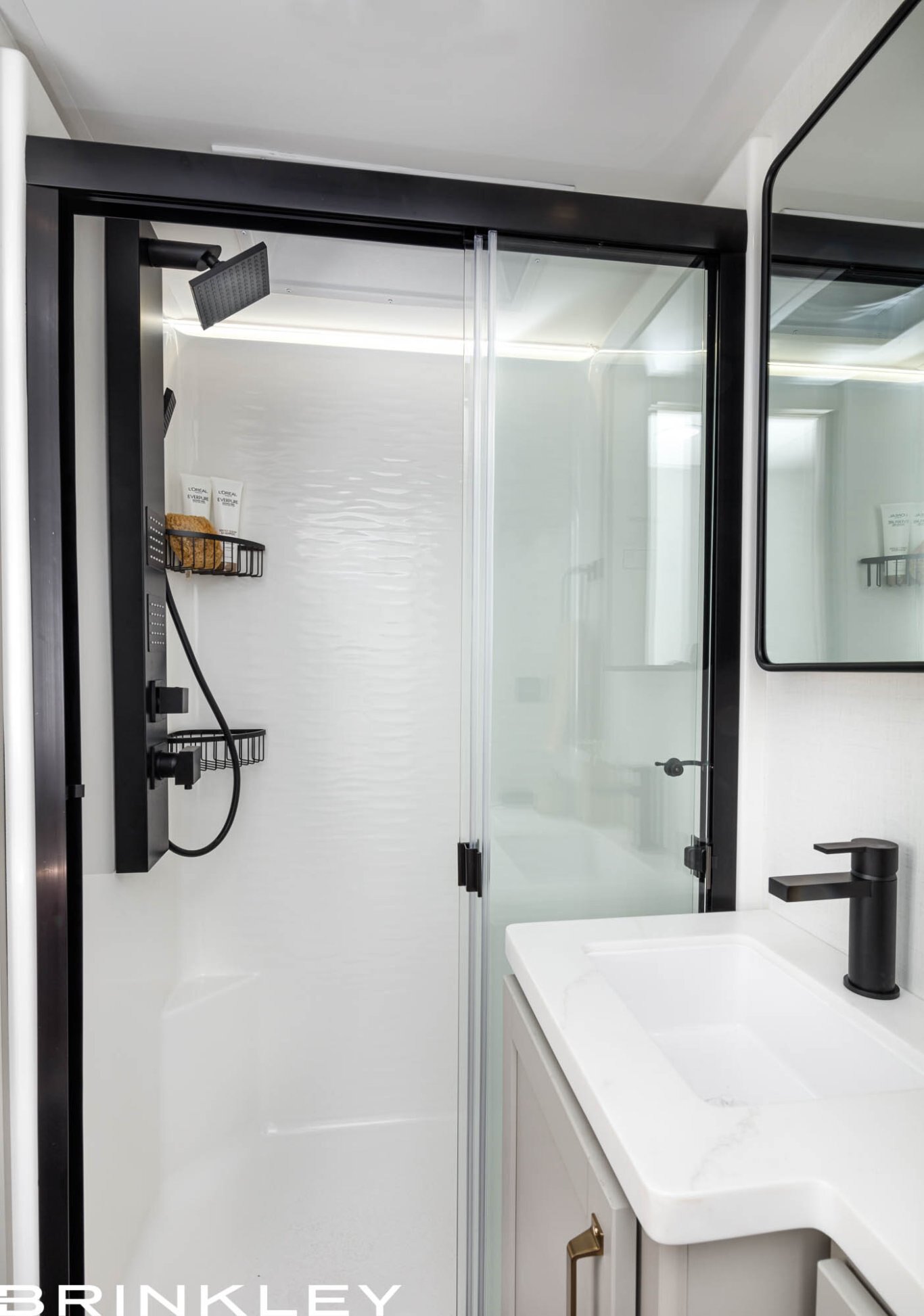

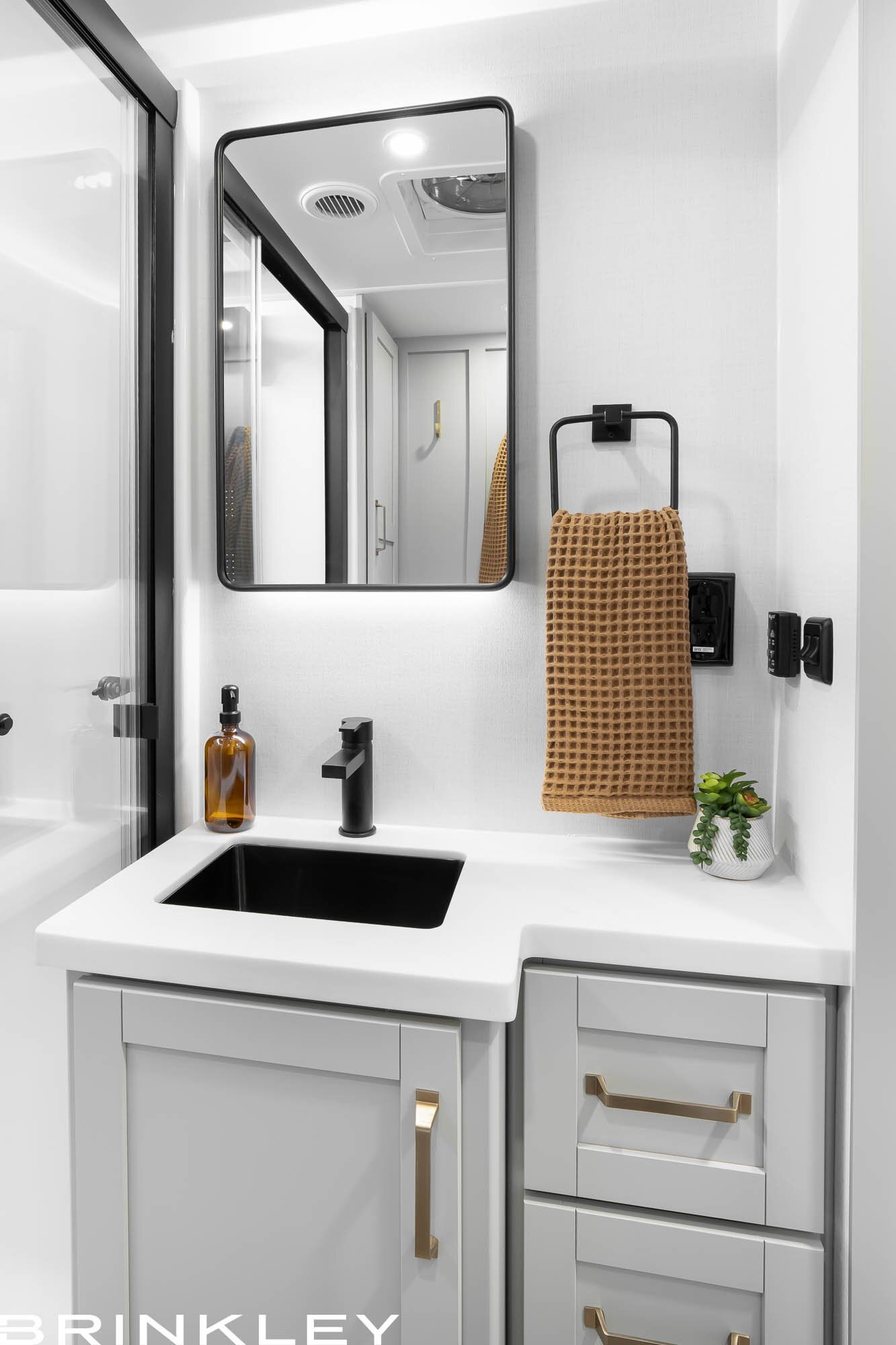

| Marine Grade Dotless COB Neon LED Shower Lighting Space Saver Bathroom Passage Door(s) Backlit Recessed Bathroom Medicine Cabinet Residential Solid Surface Countertop Black Stainless Steel Sink w/ Tuff Coat Glass Sliding Shower Door One-Piece 42"x30" Molded Fiberglass Shower (Low-Step/Max Height) Shower Seat Install Prep Residential Shower System w/ Head, Body, & Handheld Sprayers Overhead Shower Cove 3 Matching Bath Hooks Toilet Paper Holder w/ Magnetic Travel Keeper Oversized Linen Closet 79.5″ Bathroom Ceiling Height Porcelain Toilet Maxxair Fan w/ Rain Sensor |

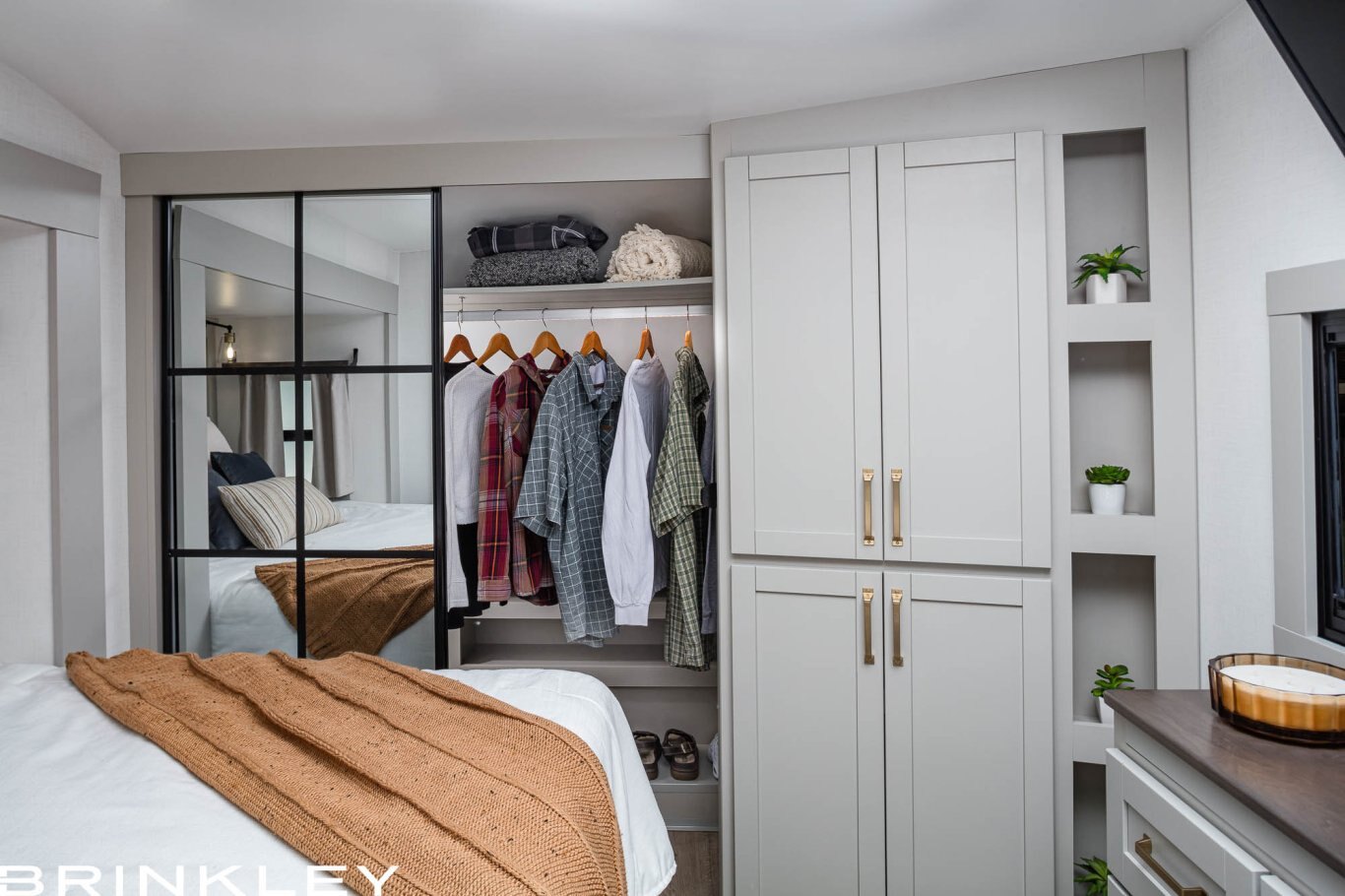

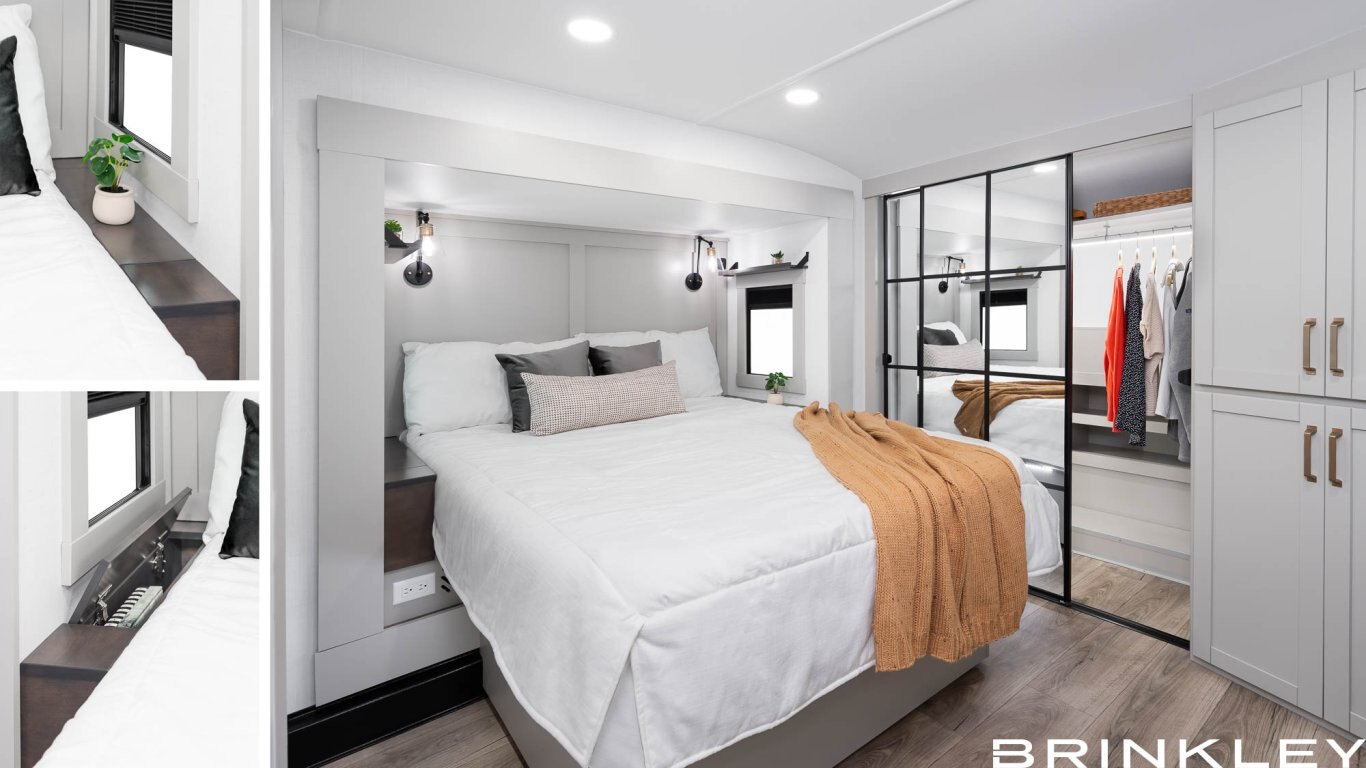

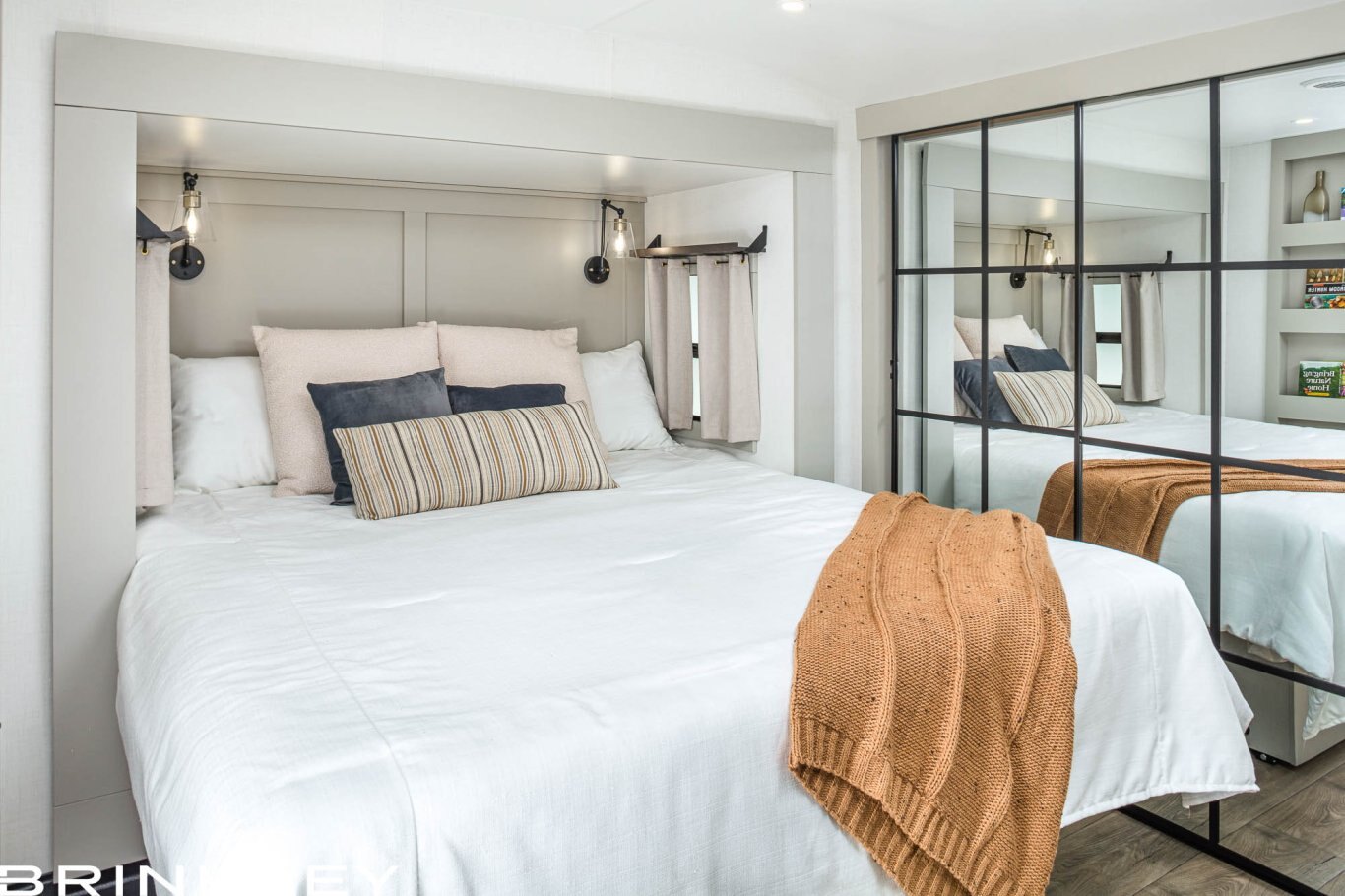

Bedroom

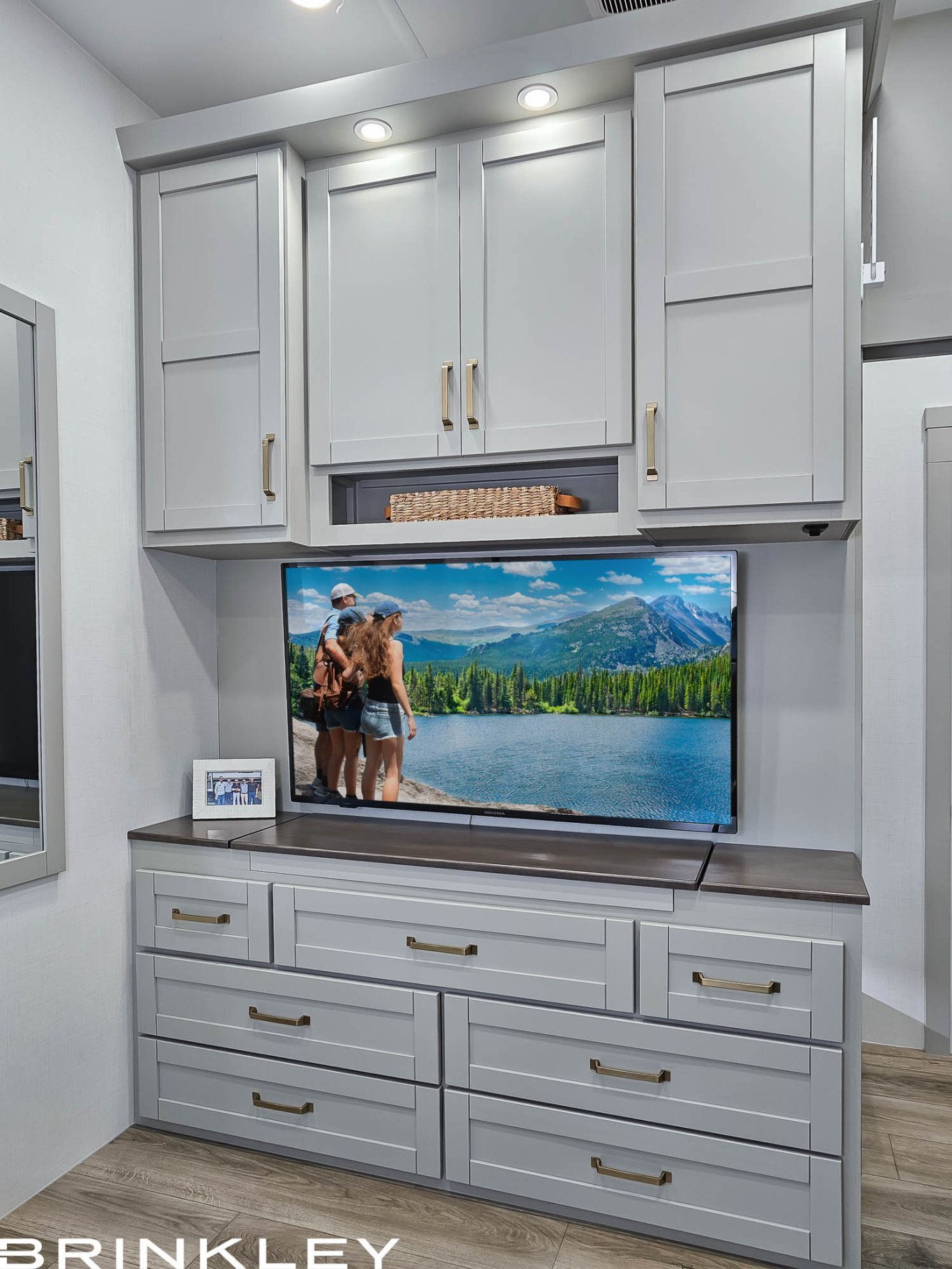

| 79.5″ Bedroom Ceiling Height 67″ Bedroom Slide-Out Height Dimmable Bedroom Lighting King Bed w/ Residential 9″ Memory Foam Mattress (70″x80″) Queen Bed w/ Residential 9″ Memory Foam Mattress (60″x80″) & Nightstands Matching Comforter & Pillow Package Dual Motion Activated LED Bed Lights Dual Bedside Overhead Shelves (CPAP Extensions Available Through Parts Dept.) Dual Bedside Outlets w/ USB & USB-C Finished Under-Bed Storage Compartment w/ Motion Activated Lighting Dual Reading Sconce Lights 3″ Deep Bedside Display Shelves Walk-In Closet w/ Residential Mirrored Sliding Doors Bright LED Closet Lighting Residential Style Dresser Hidden Sliding Dresser Top Storage Compartment 32″ Smart TV Folding Wall Hooks |
Construction & Warranty
| Designed For Full-Time RVing ✪ Warrantied for Full-Time RVing 1-Year Transferrable Limited Base Warranty 3-Year Limited Structural Warranty 3-Year Limited Internal Seals & Gasket Warranty Brinkley Automotive Exterior Seals Package! Low-Maintenance Roof 20-Year Roof Membrane Warranty & 25-Year Seal Warranty 5-Year Limited w/ 1-Year No Questions Tire Warranty Complimentary 24/7 Roadside Assistance (12 Months) Developed by Campers with Customer Feedback Basement Utility Access w/ Removable Sliding Doors, Hinged Wall, & Motion Activated Lights Bedroom Slim Rack Slide System SO Hot Feature Icon Round Automotive-Style Riveted Wheel Skirts & Panels Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel Reinforced & Walkable Slide Roofs Thermaflex® No Kink No Tear Heat Ducts Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) Water Shutoff Valve on ALL Fixtures Brass Plumbing Fittings (Segment First) Industry Best Insulation Package: ✔ R40 Roof, R11 Walls, R40 Floor Insulation ✔ Double Insulated Roof, Front Cap, & Main Floor ✔ Heated & Enclosed Underbelly (Circulated Forced Air) ✔ Insulated Slideout Floors ✔ Insulated & Trimmed Pinbox Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process: ✔ Industry Leading 350+ Point Inspection & Testing Process ✔ Off-Road Simulation Tested (Industries Exclusive) ✔ Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.) |
Literature
| Name | Link |
| DOWNLOAD 3610 FLYER | Download |
