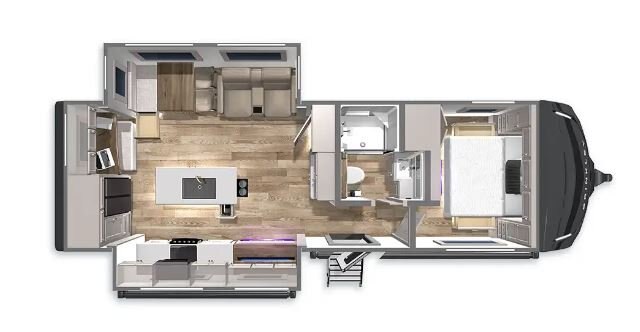

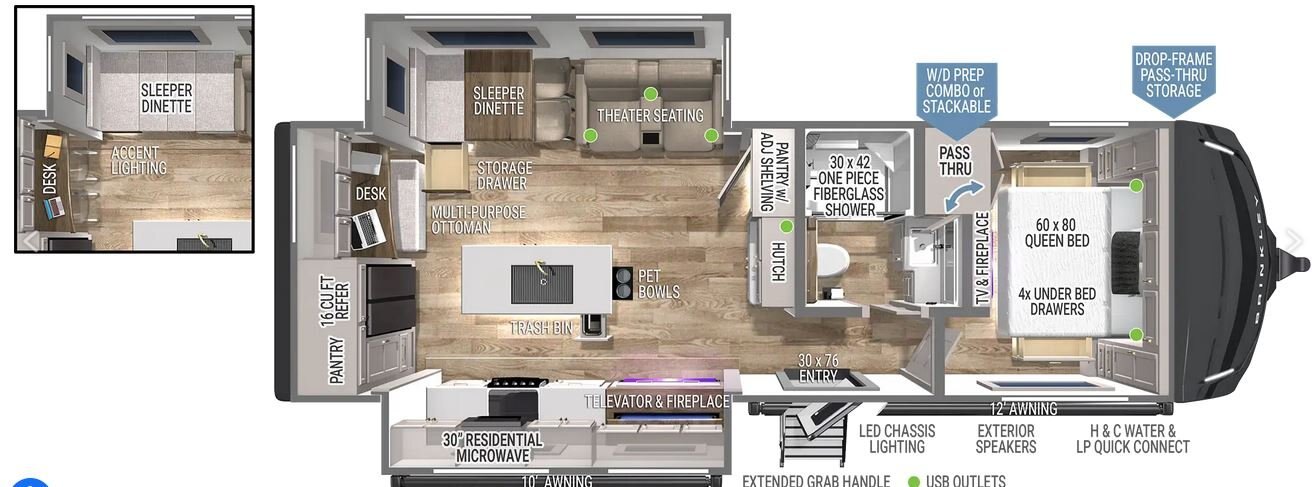

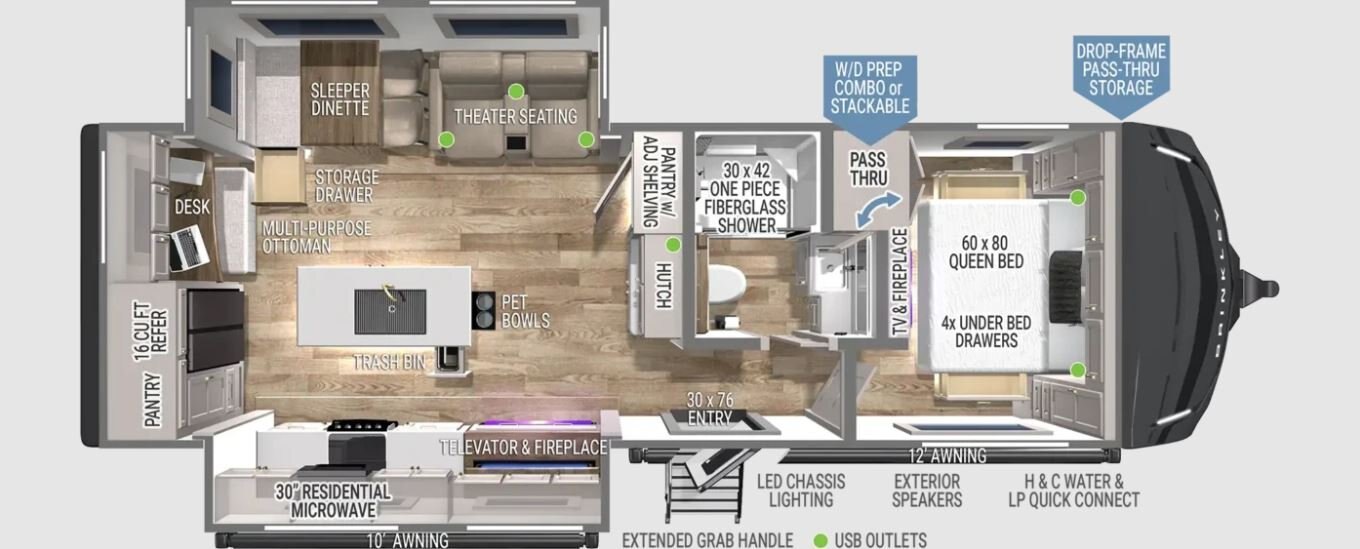

2026-Brinkley-Model-Z-AIR-285-Floorplan-Flyer.pdf
- Monday 8:30 AM – 5:00 PM
- Tuesday 8:30 AM – 5:00 PM
- Wednesday 8:30 AM – 5:00 PM
- Thursday 8:30 AM – 5:00 PM
- Friday 8:30 AM – 4:00 PM
- Saturday Closed: Appointment Only
- Sunday Closed: Appointment Only
ID # 38568396
2026 Brinkley MODEL Z AIR 285
Call for Price
Overview
Specifications
weights
axles & tires
tank capacity
exterior
interior
insulation
chassis & suspension
exterior & storage
solar, electrical & hvac
plumbing & lp
interior & living spaces
kitchen & dining
bathroom
bedroom
construction & warranty
literature
Videos
Documents

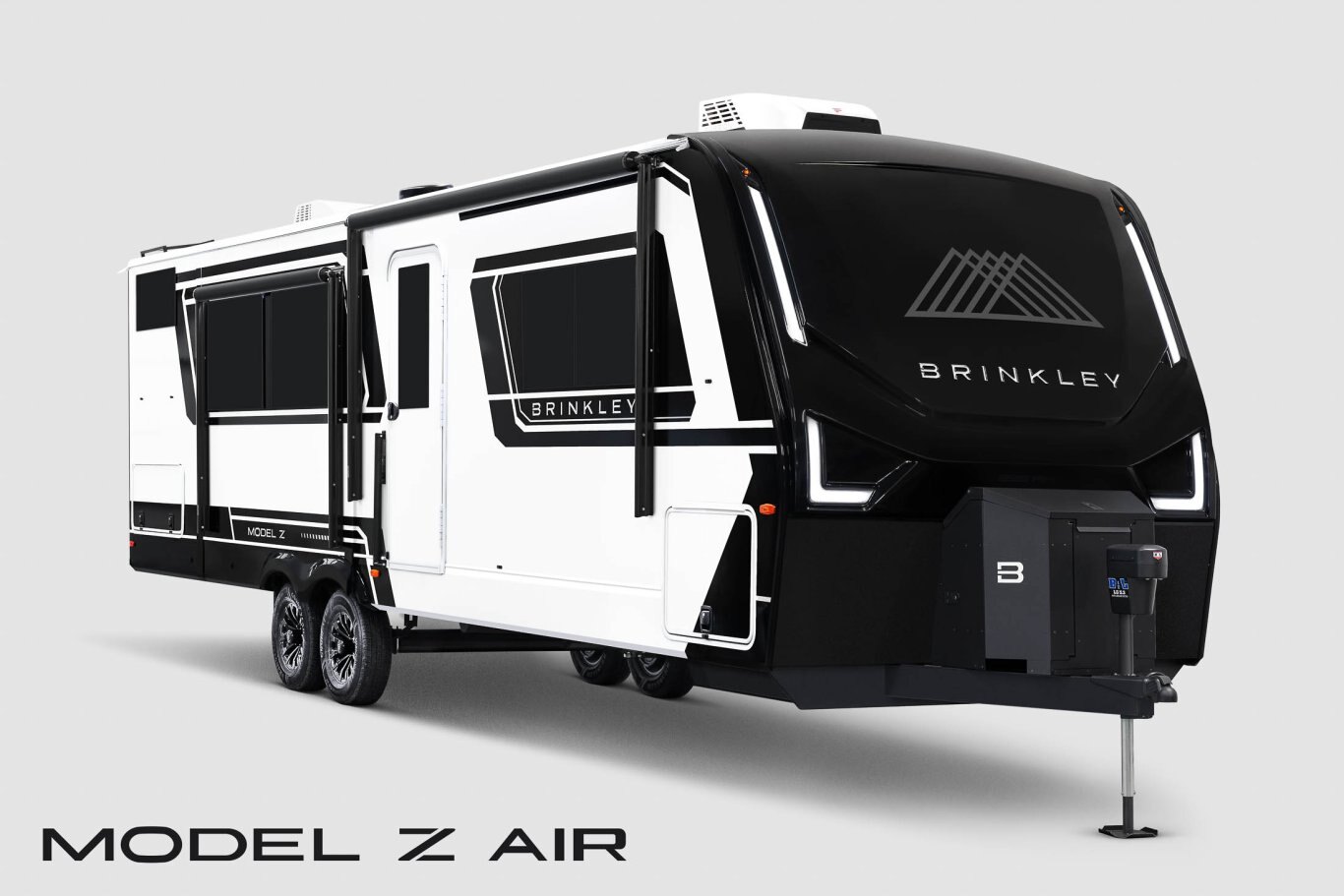

Premium Luxury Travel TrailersThis isn’t just a travel trailer; it’s an invitation to redefine your expectations and rediscover the joy of exploration. The Brinkley Model Z AIR Premium Travel Trailers are a class apart. With an automotive exterior and a residential interior, this travel trailer offers a unique combination of style and comfort. The Model Z AIR is designed to provide an unparalleled RV ownership experience with no compromises. Whether you’re a weekend camper or a full-time RVer, the Z AIR offers features and amenities that will appeal to all camping enthusiasts. It boasts a fit and finish unmatched in its category, with a combination of high-end features that are unheard of on travel trailers. See it for yourself; look for upcoming RV shows near you here.
|
Model
Z AIR
Category Name
Trailers
Year
2026
Sale Type
New
Manufacturer
Brinkley
Height
11′ 7″
Length
33′ 11″
UVW Weight
9,691 lbs.
GVWR Weight
12,495 lbs.
Hitch Weight
890 lbs.
Weights
WEIGHTS |
285 |
| UVW (lbs.) | 9,691 |
| GVWR (lbs.) | 12,995 |
| Hitch (lbs.) | 890 |
Axles & Tires
AXLES & TIRES |
285 |
| Axle Rating (lbs.) | 6,000 |

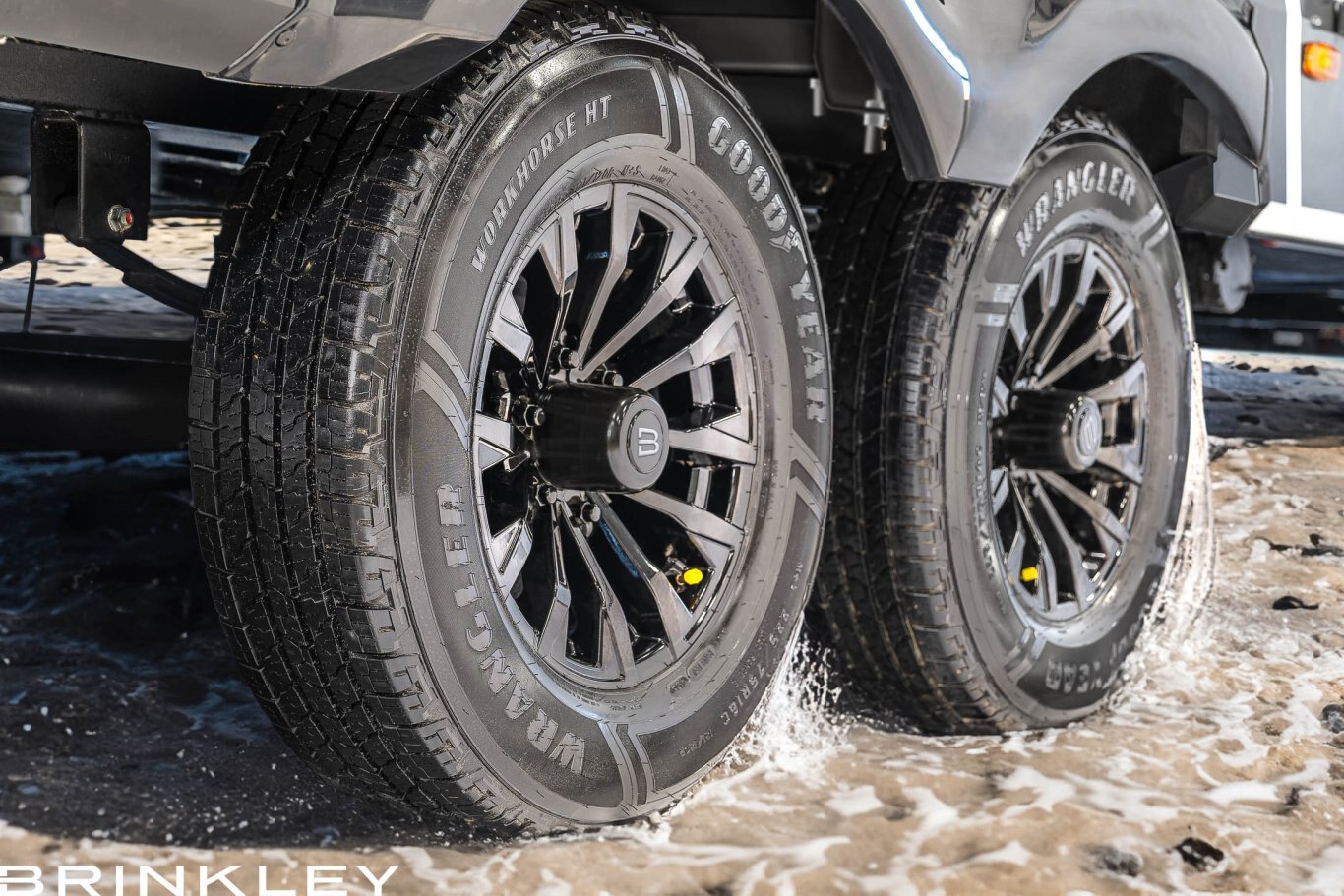

| Tire & Wheel Size | 225/75 R16 |
| Load Range | E |
| Ply | 10 |
Tank Capacity
TANK CAPACITY |
285 |
| Fresh Water (gal.) | 62 |
| Gray Water (True gal.) | 110 (80 True +30) |
| Black Water (gal.) | 40 |
| LP (lbs.) | 60 (30+30) |
Exterior
EXTERIOR |
285 |
| Length | 33′ 11″ |
| Height | 11′ 9″ |
| Width | 96″ |
| Cargo Storage (cu.ft.) | 45+ |
Interior
INTERIOR |
285 |
| Ceilings | 84" |
| Slide Ceilings | 72.5" |
Insulation
INSULATION |
285 |
| Floor R-Value | R40 |
| Walls R-Value | R9 |
| Ceiling R-Value | R40 |
Chassis & Suspension
|

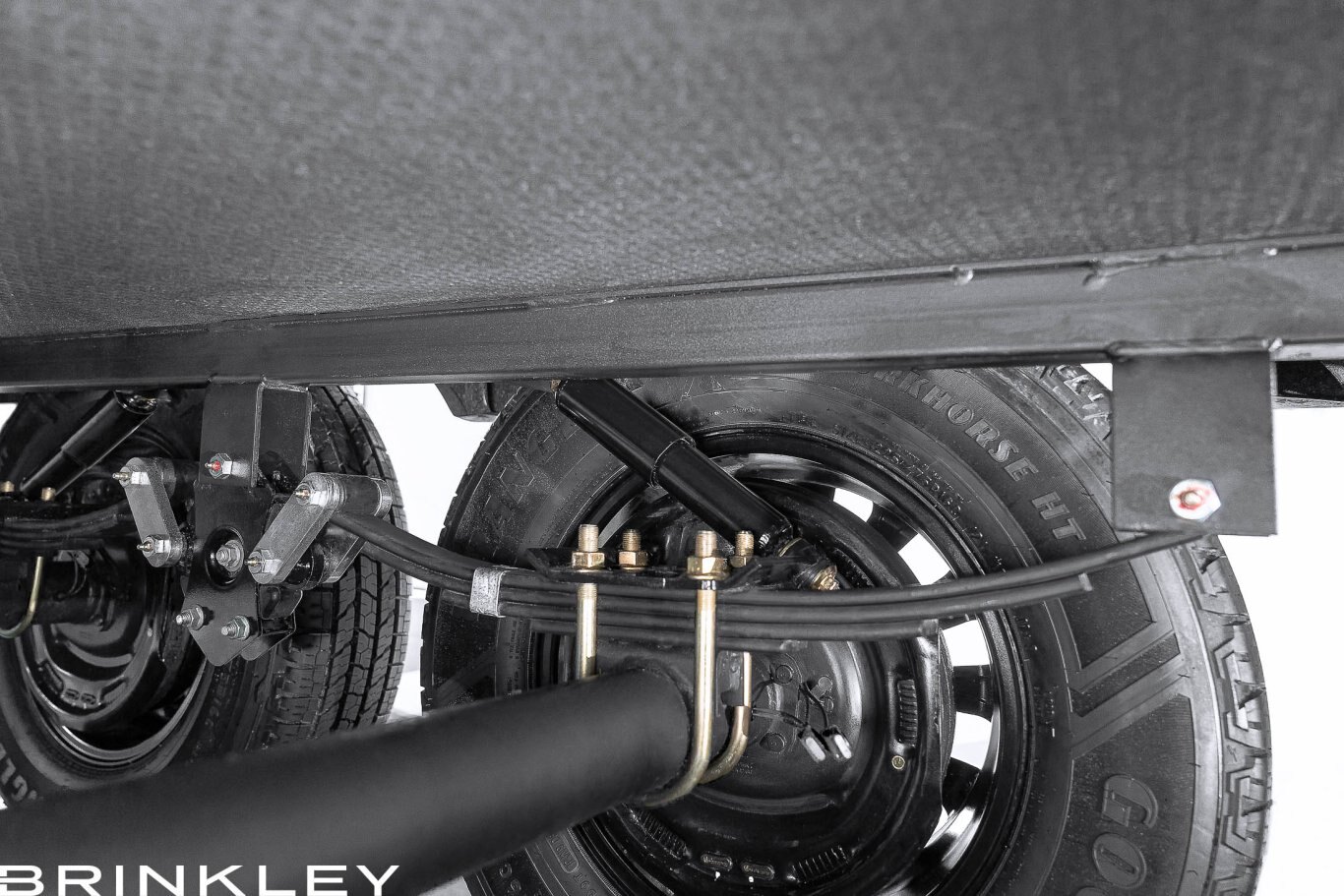

Drop Frame Chassis (Brinkley Spec & Certified) Road Debris Galvanized Wheel Well Shields Road Defense Triple Powder Coated Chassis |
Exterior & Storage
| Square Euro Frameless Windows w/ 6″ Openings (Industry 1st) |
| Dual Pane Square Euro Frameless Windows w/ 6″ Openings |
| Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics |

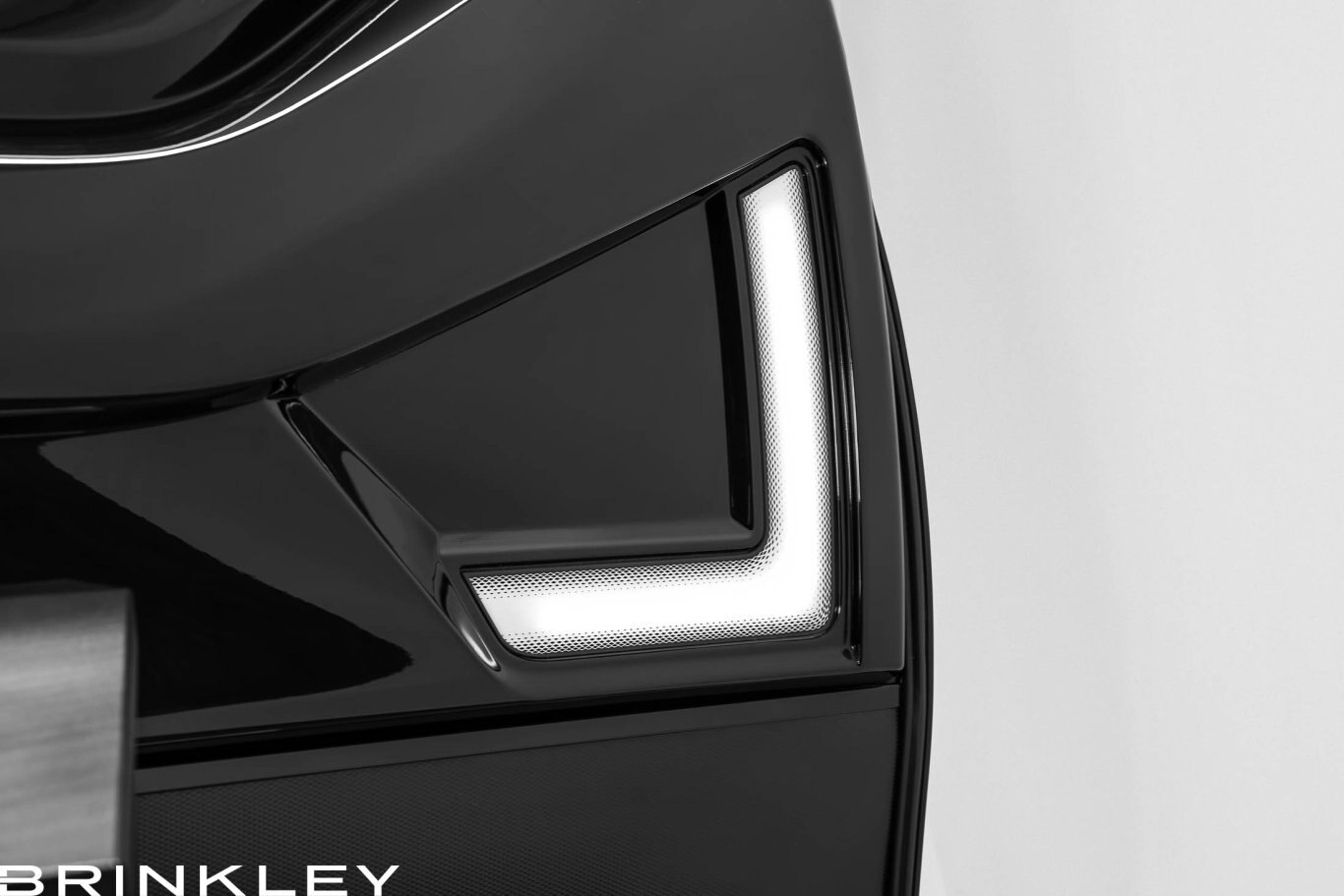

| Automotive Front Cap, Lights, & Lenses |
| Exterior Speakers w/ Bluetooth & Campside Controls |
| Dual Electric Awnings w/ LED Lighting |
| Off-Campside LED Flood Light |
| Backup Camera & Wireless Monitor w/ Observation/Security Mode |

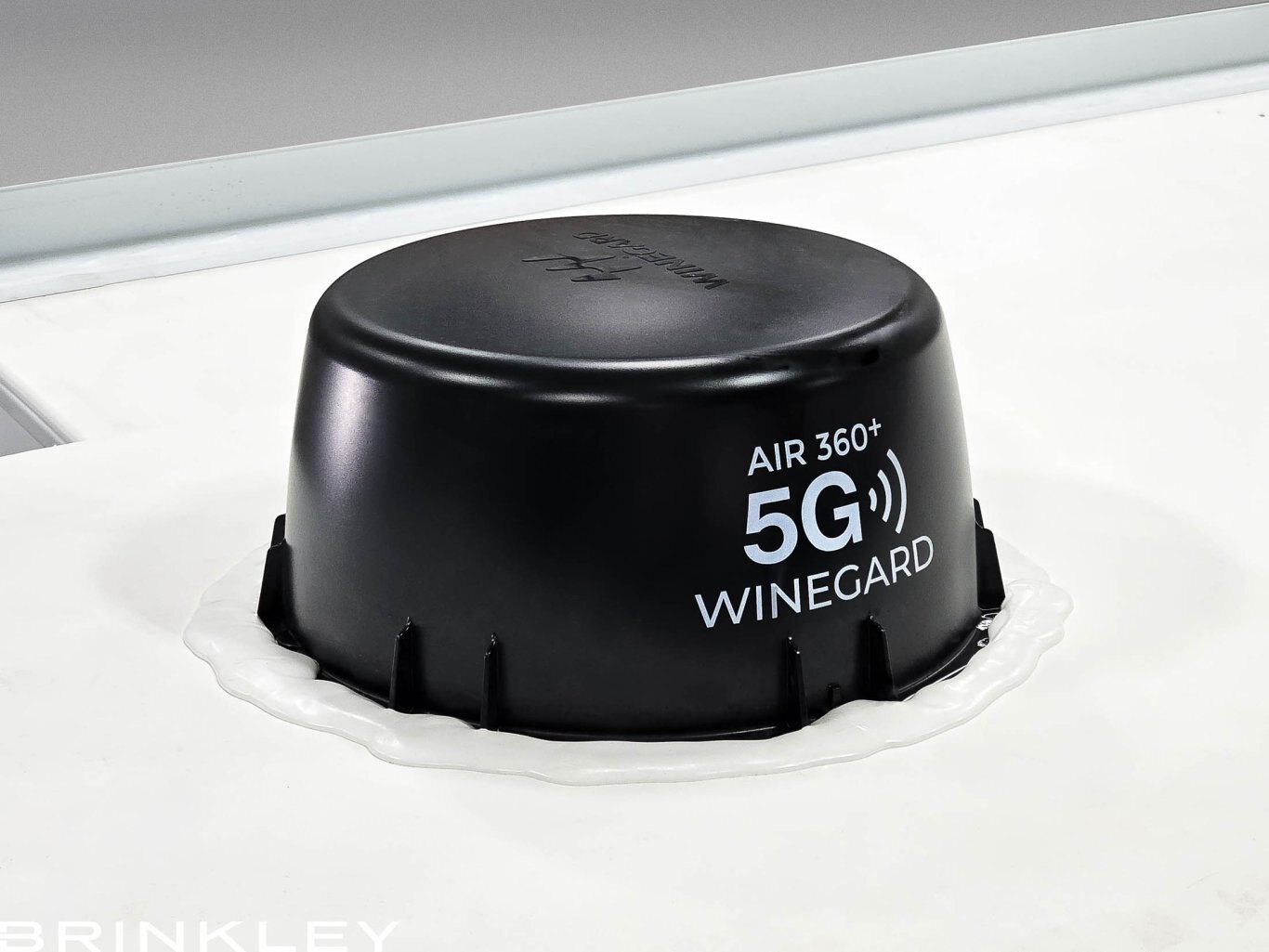

| Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster |
| Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets |
| Over 45 Cubic Feet of Exterior Storage |
| Front Pass-Through Storage Compartment: |
| ✔ Full-Width LED Strip Lighting |
| ✔ 4x Power Outlets |
| ✔ Antenna/Coax Hookup |
| ✔ Forced-Air Heated & Insulated |
| ✔ Off-Campside 'Saddle Bag' Drop-Down Storage Area |
| Tough-Ply Floor & Walls in Storage Compartments |
| Pet & Property Security Campside Tie-Down |
| Slam Latch Baggage Doors |
| High-Capacity Heavy-Duty Secure Step Ladder w/ Weep Holes |
| Custom LP & Gear Box w/ Locked Battery & Tool Storage & Battery Tray (2x Group 27) |
| Rock Guard Front Protective Shields |
| Deluxe Entrance Package: |
| ✔ Oversized 30″x76″ Entry Door |

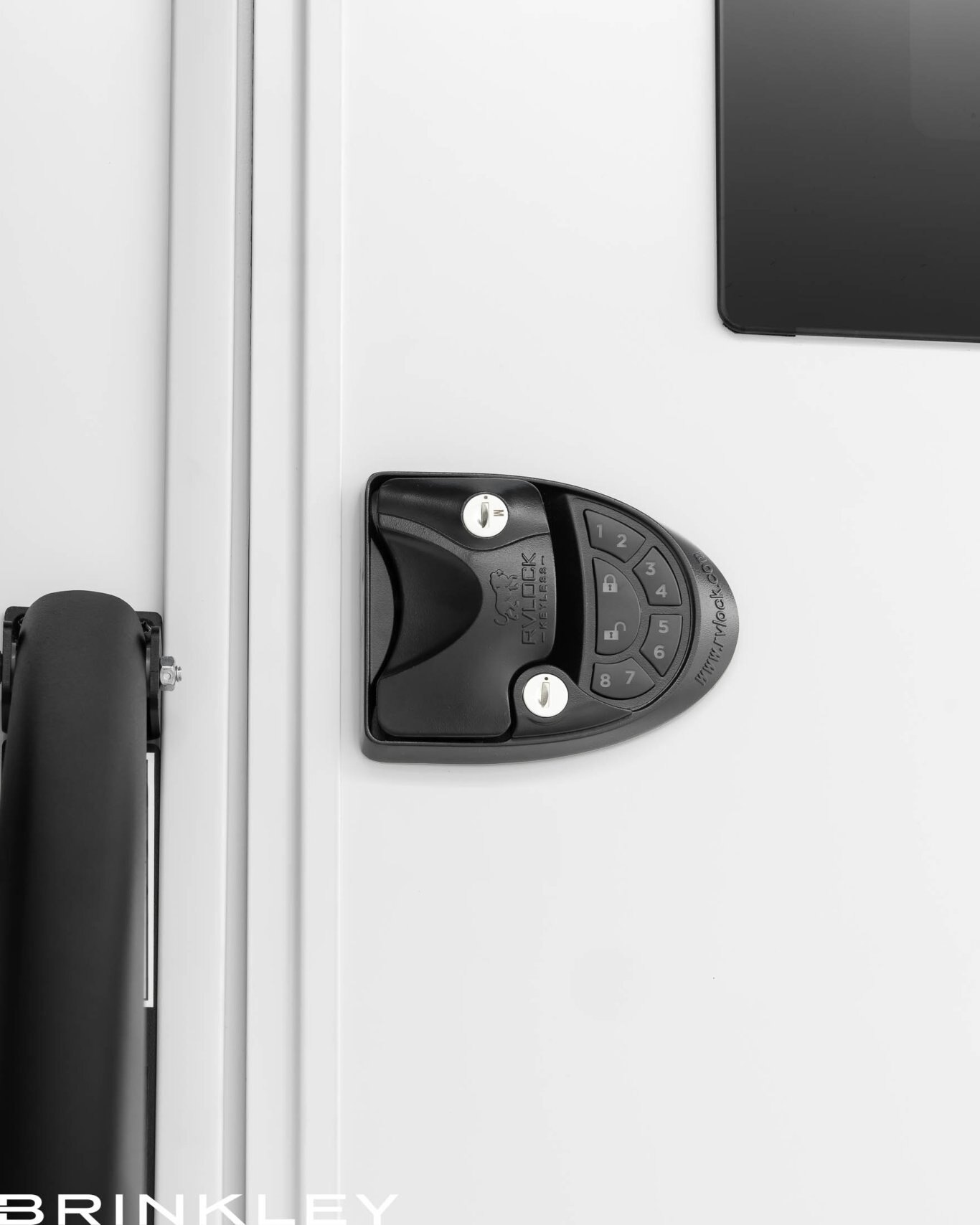

| ✔ Keyless Entry |
| ✔ Integrated Window Shade |
| ✔ Child/Pet Defender Screen Protector |
| ✔ Slapshot Screen Door Opener |
| ✔ Screen Assist Push Bar Opener |
| ✔ Screen Shot Automatic Screen Door Closer |
| ✔ Extra-Wide & Deep Solid Entry Steps |
| ✔ 54" Telescoping Entry Handrail (Extends to Bottom Step) |
Solar, Electrical & Hvac
| 370 Watt Solar Panel (740 Watt Ready) |
| 60 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready) |
| 18k BTU Rear Furrion Chill Cube Air Conditioner (Main) |
| 18k BTU Front Furrion Chill Cube Air Conditioner (Bed & Bath) |
| Brinkley Smart-Command™ Center w/ App Control |
| Thermaflex® No Kink No Tear Heat Ducts |
| Travel & Storage Mode Battery Disconnects |
| Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) |
| Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement) |
| 35k BTU High-Capacity Furnace |
| Detachable 50-amp Power Cord w/ Angled Connector |
Plumbing & Lp
| Brass Plumbing Fittings (Industry First) |
| Water Shutoff Valve on ALL Fixtures |
| Upgraded Holding Tanks w/ True Capacities |
| Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports |
| Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated) |

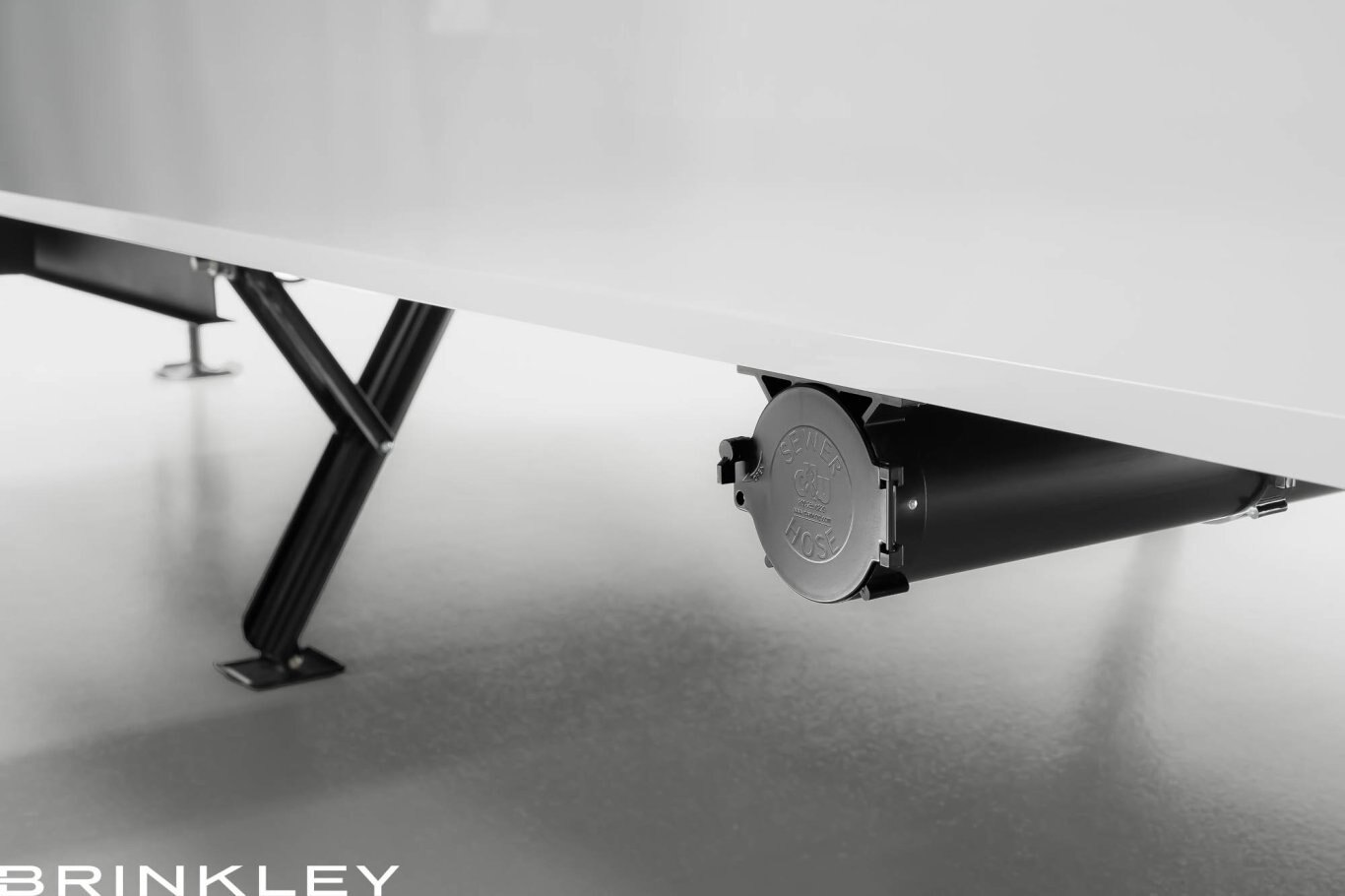

| Extended Waste Hose Storage Tube |
| Clear Sewer Cap w/ Lanyard |
| Brinkley On-Command™ Docking & Utility Center |
| 65′ Retractable City Water Hose |
| 2x 90-Degree Brass Elbows for Docking Station Water Hoses |
| EZ Winterization Valve in Utility Center |
| Washer/Dryer Prep (Stackable or Combo) |
| 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside) |
| Tankless On-Demand Water Heater (144 Gallons Per Hour) |

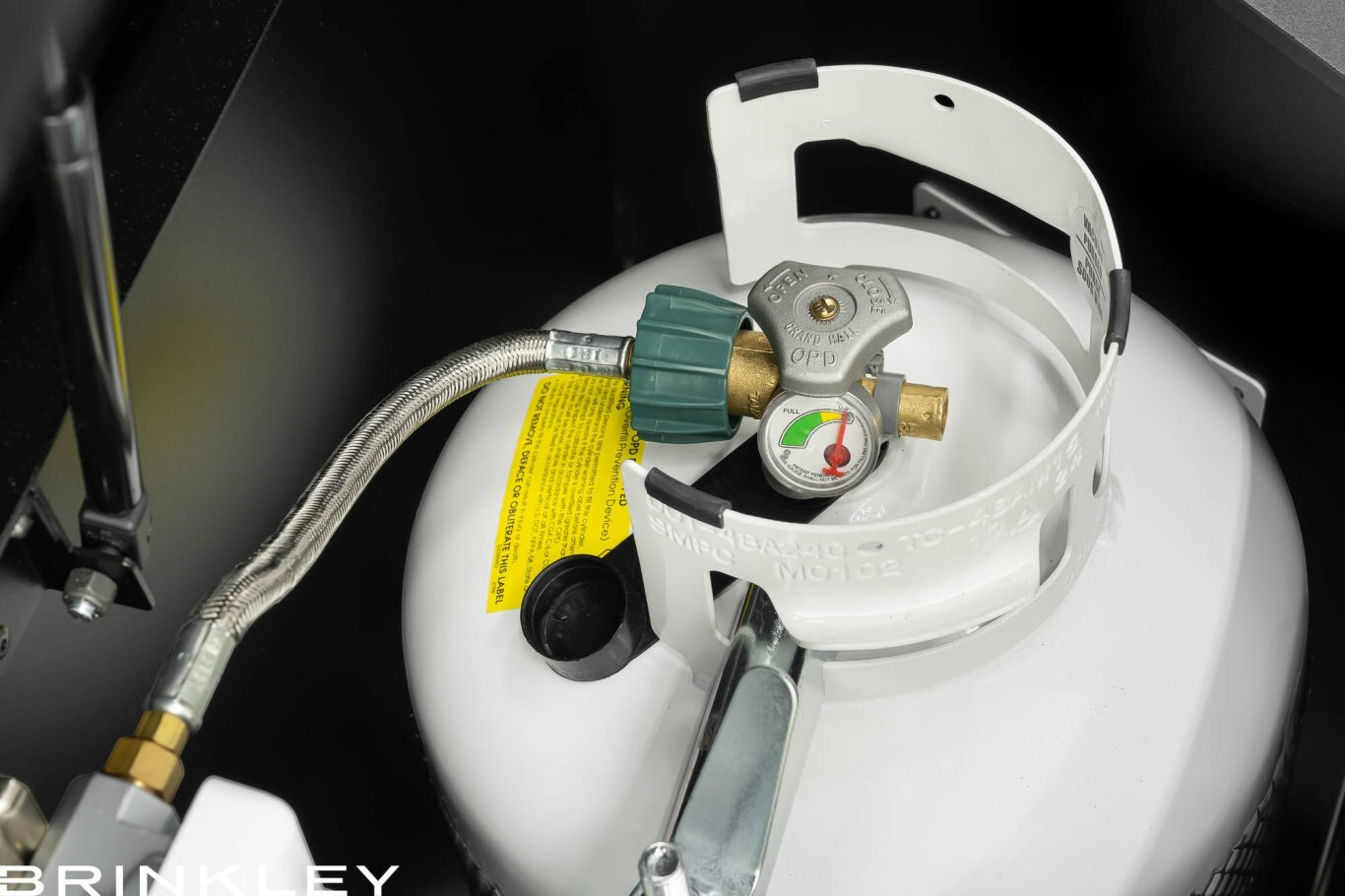

| 2x 30 lbs. LP/Propane Tanks |
| LP-IQ Propane Gauge |
| Exterior LP Quick Connect |
Interior & Living Spaces
| Brinkley CraftSense™ Wood Trim Construction |
| DUAL Flush Floor Galley & Livingroom Slides (Segment First) |
| 72.5″ Slide Out Height |
| Window Intergraded Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens |
| Dimmable Living Room Lights |
| 42″ Smart TV & Televator (Powered TV Elevator) |
| Premium Audio System w/ Bluetooth w/ Physical Controls |
| Entertainment Shelf (Behind TV) |
| Fireplace w/ 5,000 BTU Electric Heat |
| Wall Hugger Theater Seating w/ Heat & Wireless Charging (2x Recliners) |
| Desk w/ Outlets, Pencil Drawer, & Overhead Storage Cabinets |
| 13 Outlets - 3 w/ USB & USB-C |
| Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations |
| Soft-Close Cabinet Doors |
| Pet-Friendly Package: |
| ✔ Ductless Floors in Main Living Areas |
| ✔ Child/Pet Defender Screen Protector |
| ✔ 100% Carpet Free |
| ✔ Exterior Pet & Property Security Tie-Down |

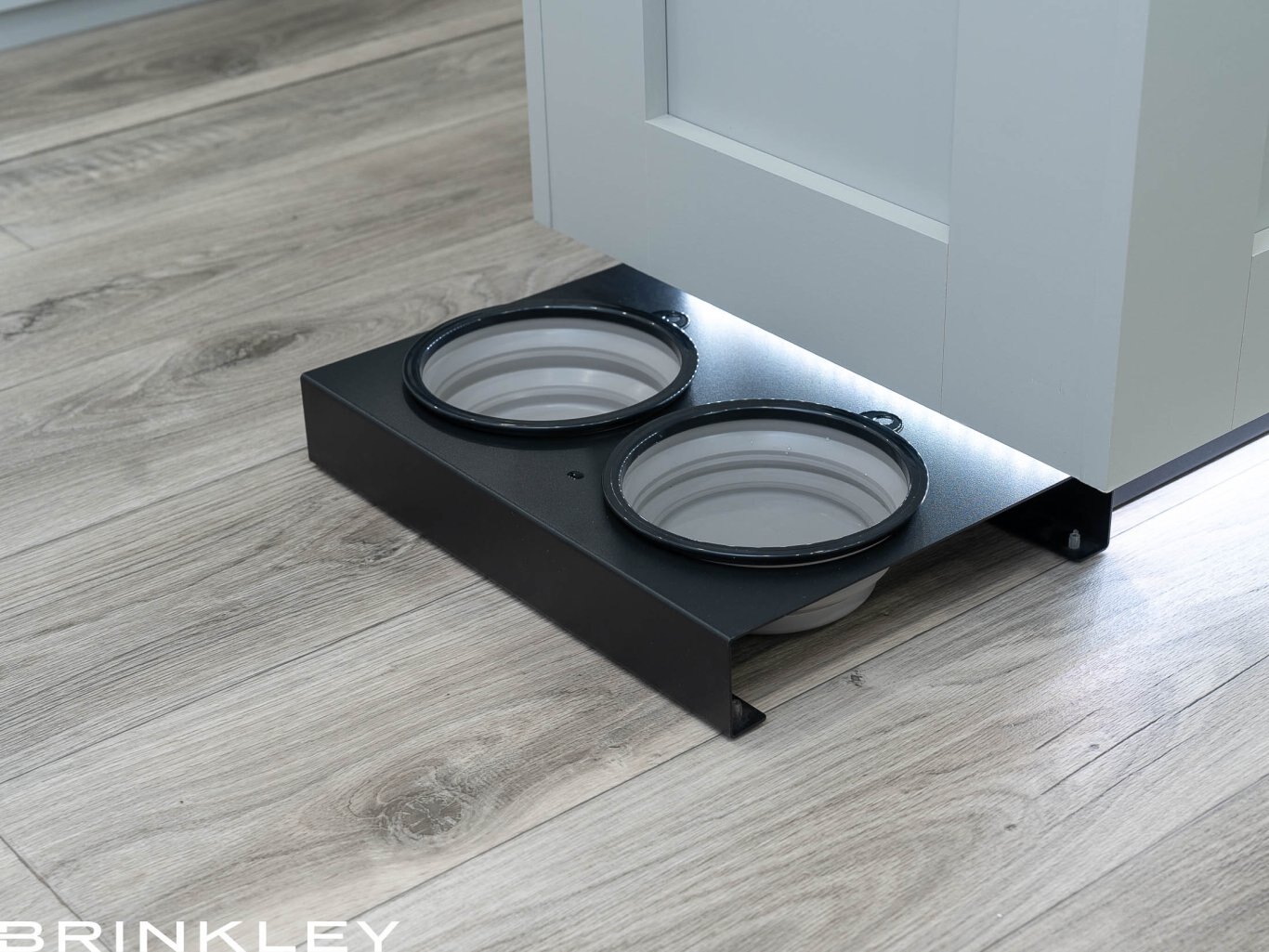

| ✔ Magnetic Pet Feeder w/ Removable Bowls (Sticks to Island Base) |
Kitchen & Dining

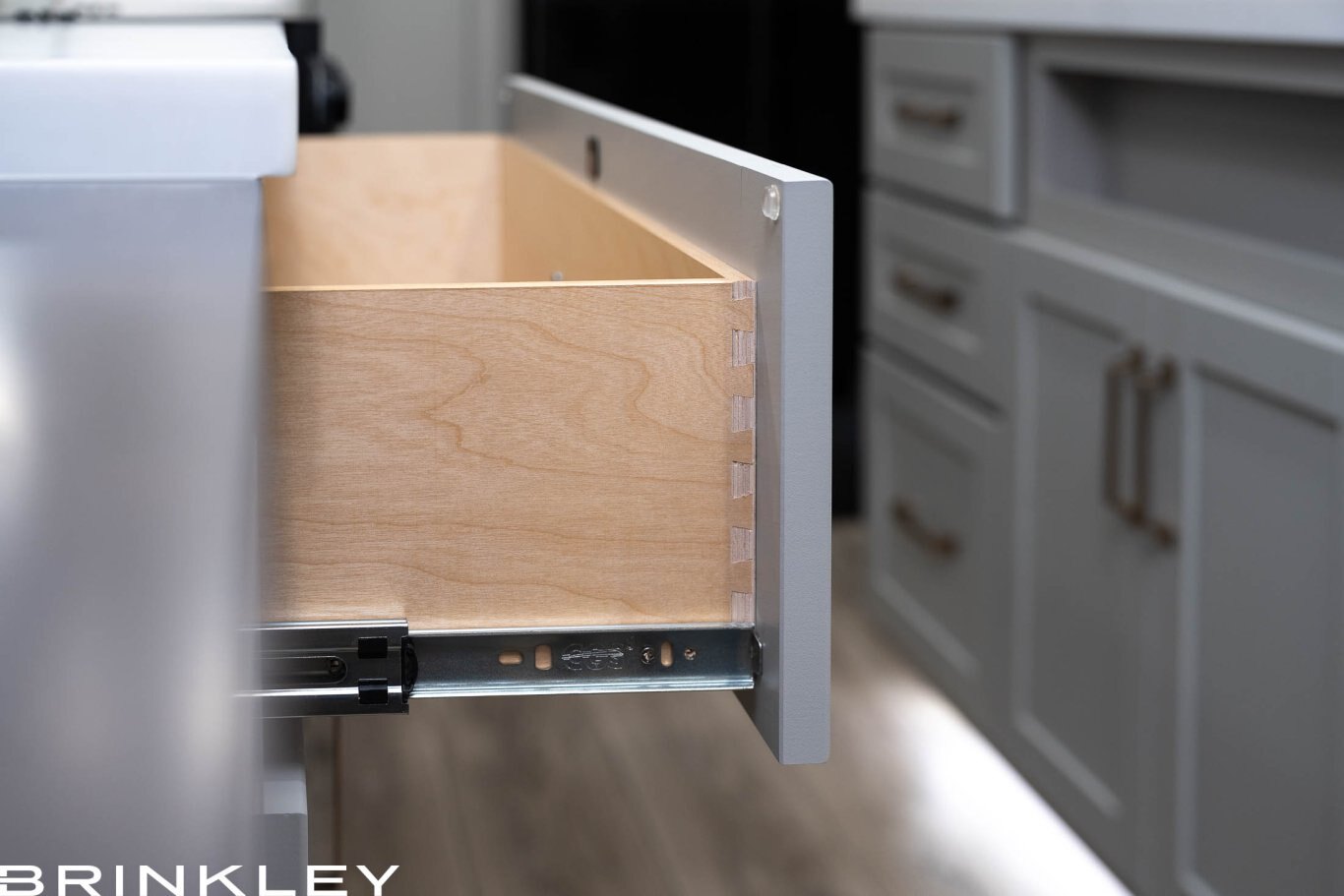

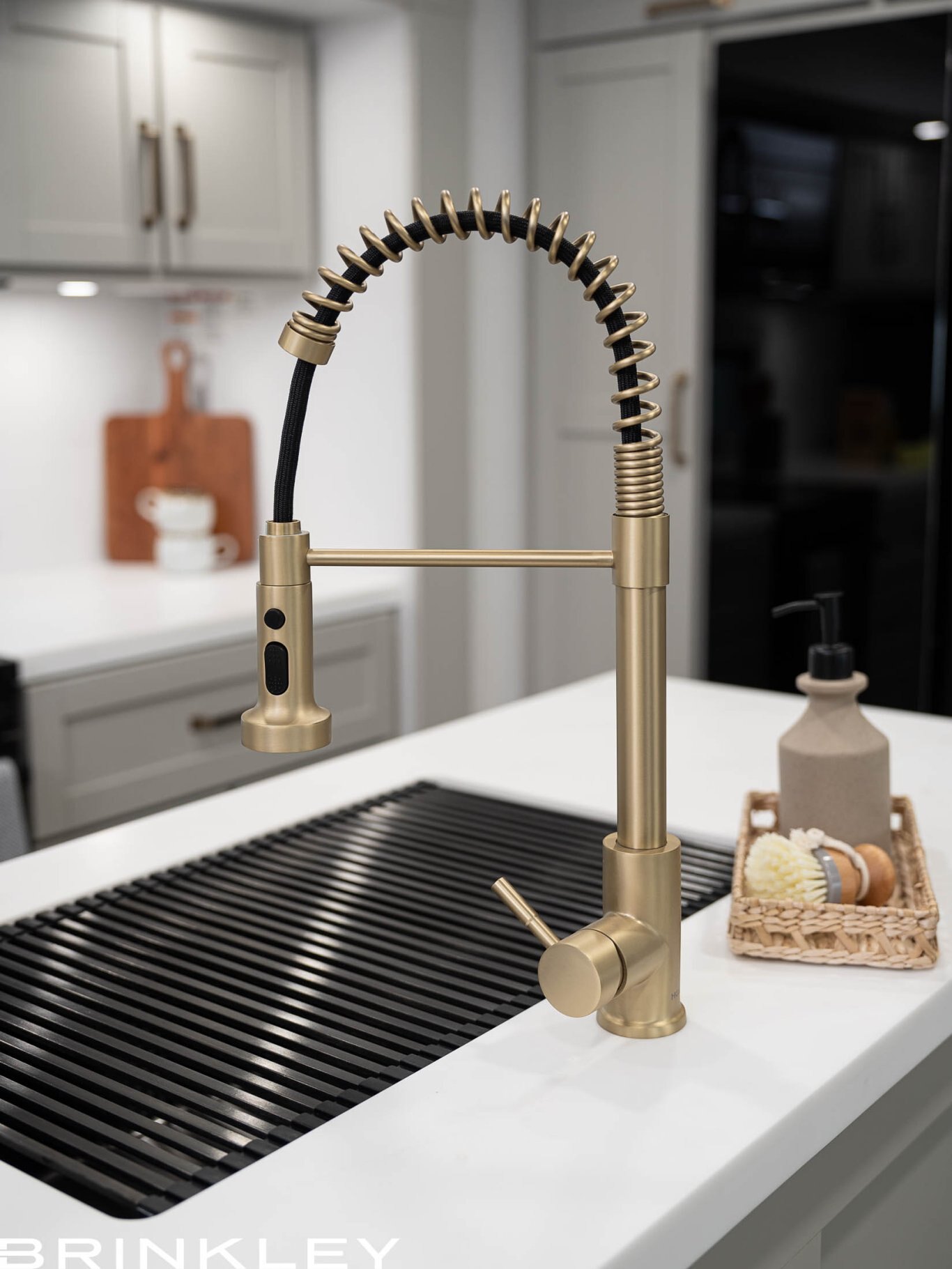

| Premium Residential Drawers w/ Dovetail Joints Residential Solid Surface Countertops One-Piece Steel Island Base (Super Stable) Sleeper Dinette w/ Storage Drawer & Indirect Mood Lighting Pull-Out Trash Bin w/ Utility Storage Stow ‘n Go Paper Towel Caddy Premium Residential Soft Close Cabinet Doors & Drawers Magnetic Cabinet & Drawer Catches Large Pantry w/ Adjustable Shelves & Appliance Outlet Second Pantry (Next to Fridge) 16 Cubic Feet Energy Efficient 12-Volt Refrigerator Residential 30″ Microwave Farmhouse Black Stainless Steel Sink w/ Tuff Coat & Roller Cover Soffit & Island Base w/ Indirect Mood Light Maxxair Fan w/ Rain Sensor |
Bathroom

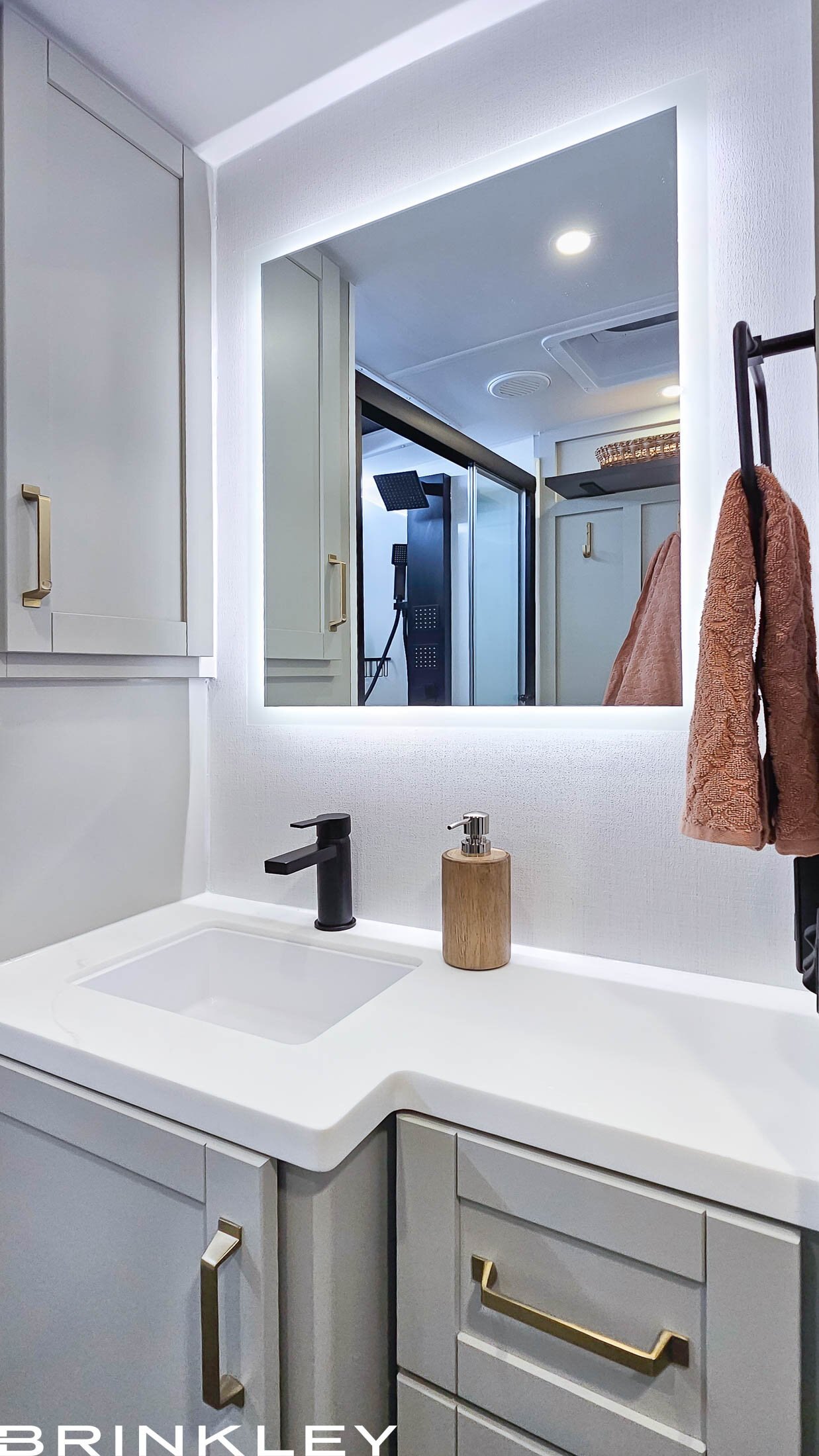

| One-piece 42"x30" Molded Fiberglass Shower w/ Seat (Low-Step/Max Height) Marine Grade Dotless COB Neon LED Shower Lighting Residential Shower System w/ Head, Body, & Handheld Sprayers Overhead Shower Cove Glass Sliding Shower Door Space Saver Bathroom Passage Door(s) Lighted Bathroom Mirror Residential Solid Surface Countertop Dual Access Bathroom to Bedroom Pass Through Storage Cabinet Overhead Shelf 3 Matching Bath Hooks Porcelain Toilet Toilet Paper Holder w/ Magnetic Travel Keeper |
Bedroom

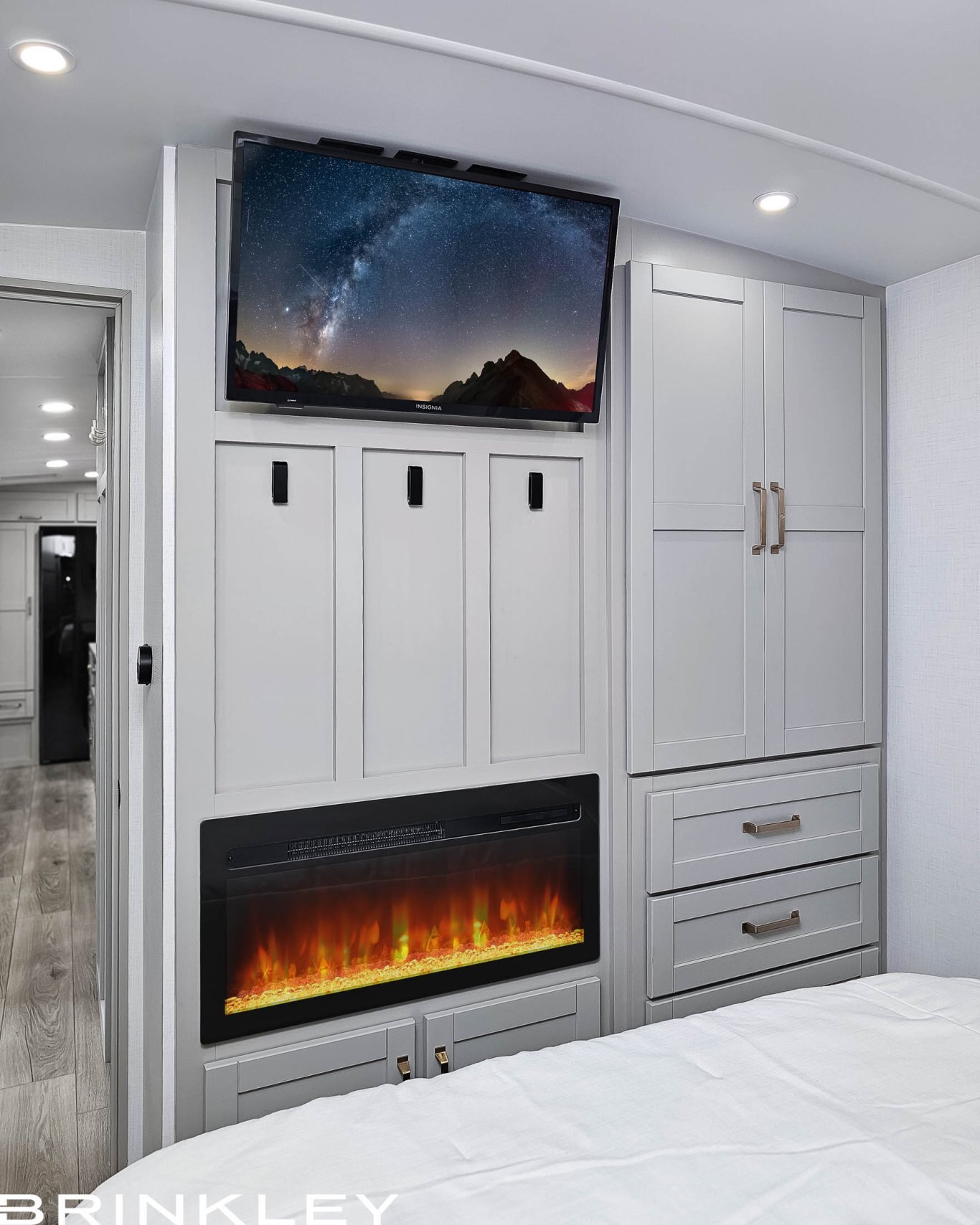

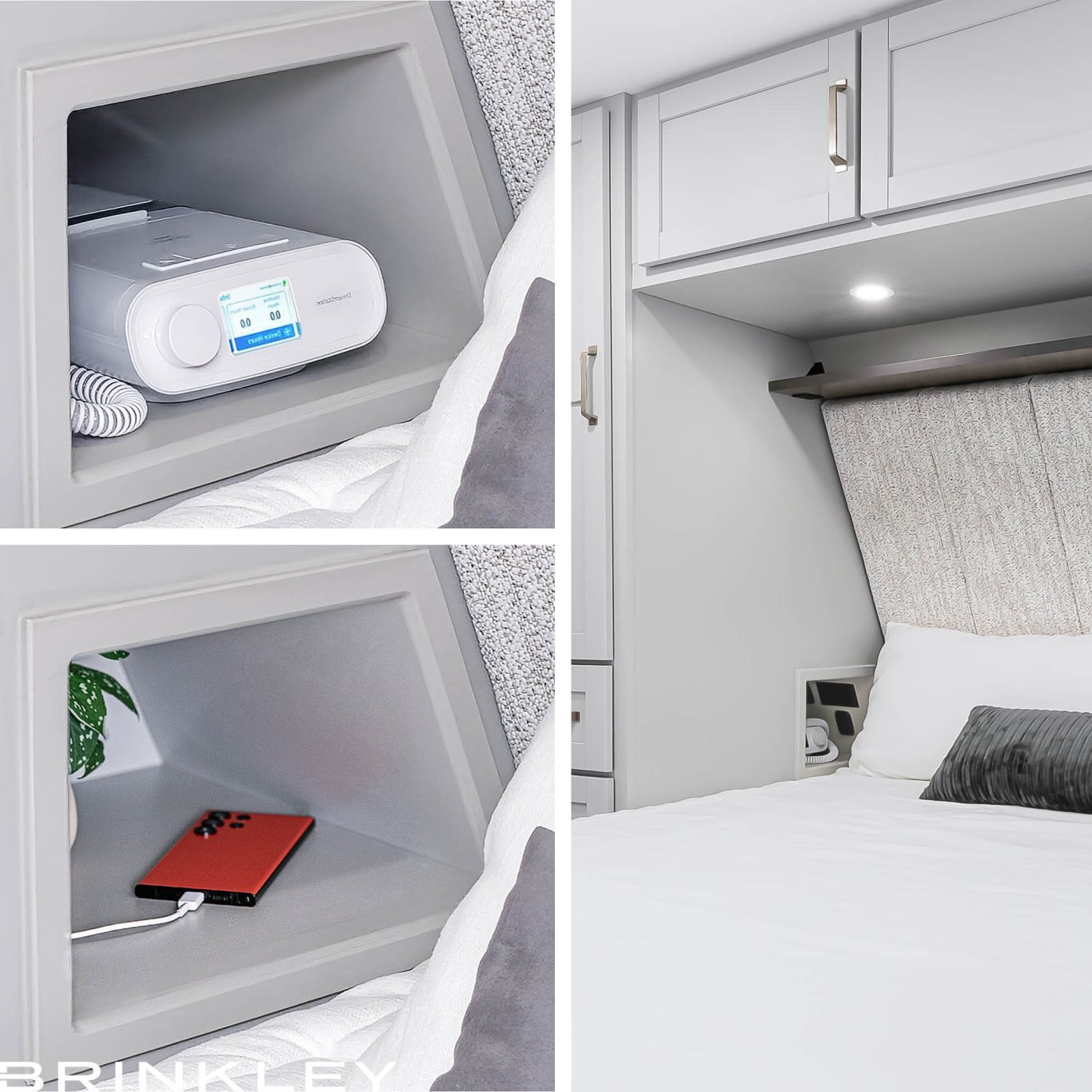

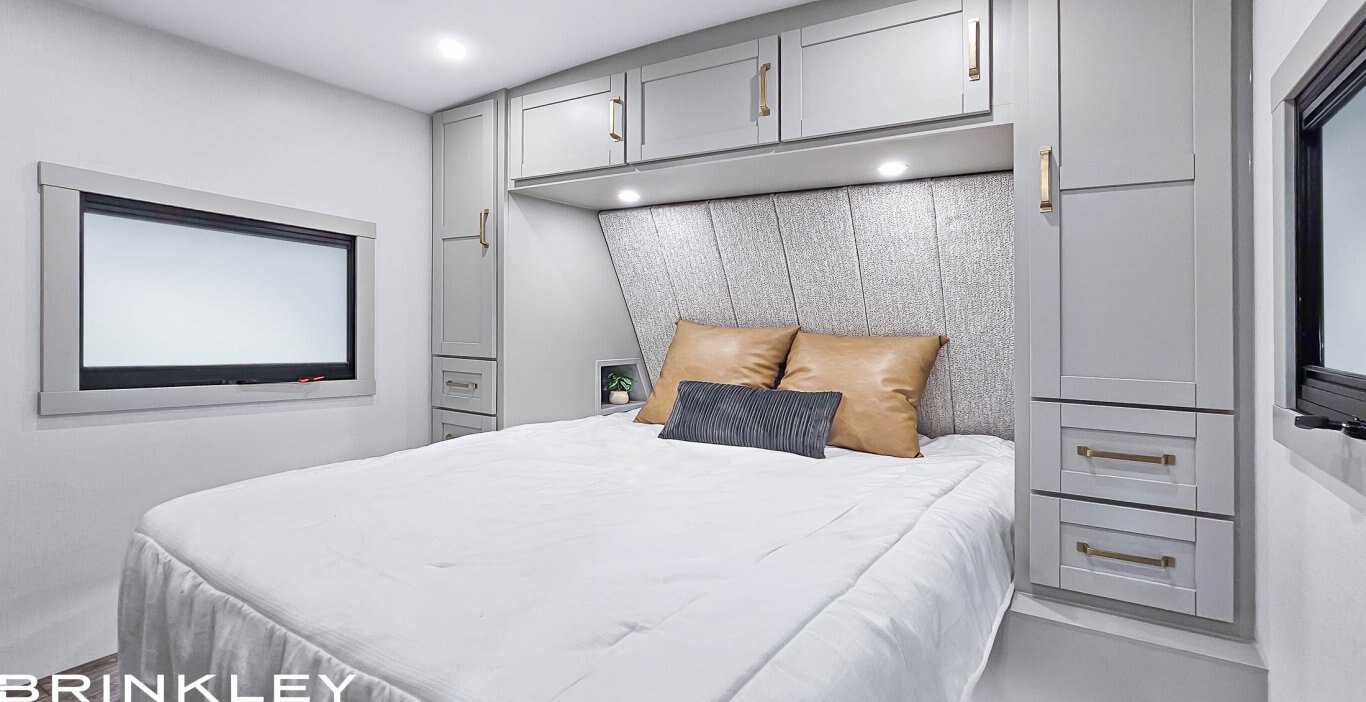

| Dimmable Bedroom Lights Queen Bed w/ Residential 7″ Memory Foam Mattress (60″x80″) Dual Built-in Bedside Storage Cubbies w/ Outlets & USB & USB-C Charing Ports (CPAP Ready) Matching Comforter & Pillow Package Dual Motion Activated LED Bed Lights Padded Headboard w/ Overhead Shelf Under-Bed Storage Drawers 2x Felt-lined Under-Bed Storage Trays Under-Bed Storage Space w/ Lockable In-Floor Steel Safe Dual Reading Sconce Lights Cordless Vacuum Prep w/ Closet/Wardrobe Outlet Dual Wardrobe Closets w/ Drawers 32″ Smart TV Fireplace w/ 5,000 BTU Electric Heat (Bedroom) |
Construction & Warranty
| Designed by Campers & Developed with Customer Feedback Designed For Full-Time RVing ✪ Warrantied for Full-Time RVing 1-Year Transferrable Limited Base Warranty 3-Year Limited Structural Warranty 3-Year Limited Internal Seals & Gasket Warranty Brinkley Automotive Exterior Seals Package! Low-Maintenance Roof SO Hot Feature Icon Round 20-Year Roof Membrane Warranty & 25-Year Seal Warranty 5-Year Limited w/ 1-Year No Questions Tire Warranty Complimentary 24/7 Roadside Assistance (12 Months) Developed by Campers with Customer Feedback Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights Automotive-Style Riveted Wheel Skirts & Panels Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel Reinforced & Walkable Slide-Out Roofs Thermaflex® No Kink No Tear Heat Ducts Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) Water Shutoff Valve on ALL Fixtures Brass Plumbing Fittings (Segment First) Industry Best Insulation Package: ✔ R40 Roof, R9 Walls, R40 Floor Insulation ✔ Double Insulated Roof, Front Cap, & Main Floor ✔ Heated & Enclosed Underbelly (Circulated Forced Air) ✔ Insulated Slide-Out Floors Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process: ✔ Industry Leading 350+ Point Inspection & Testing Process ✔ Off-Road Simulation Tested (Industries Exclusive) ✔ Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.) |
Literature
| Name | Link |
| DOWNLOAD 285 FLYER | Download |
